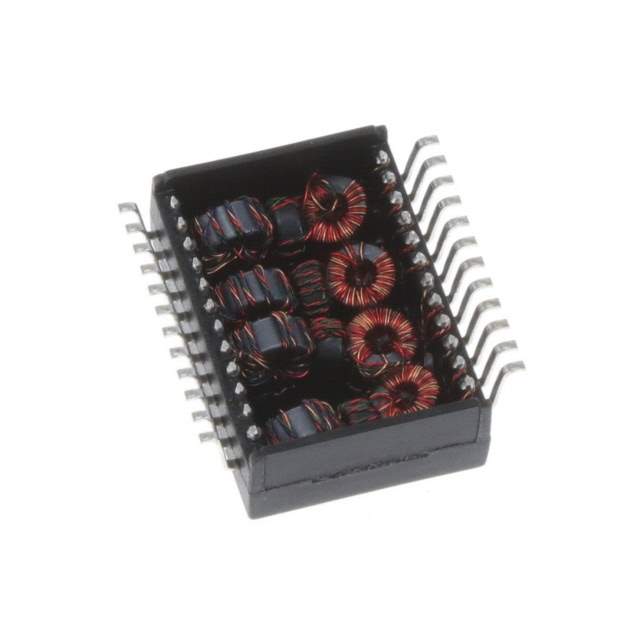

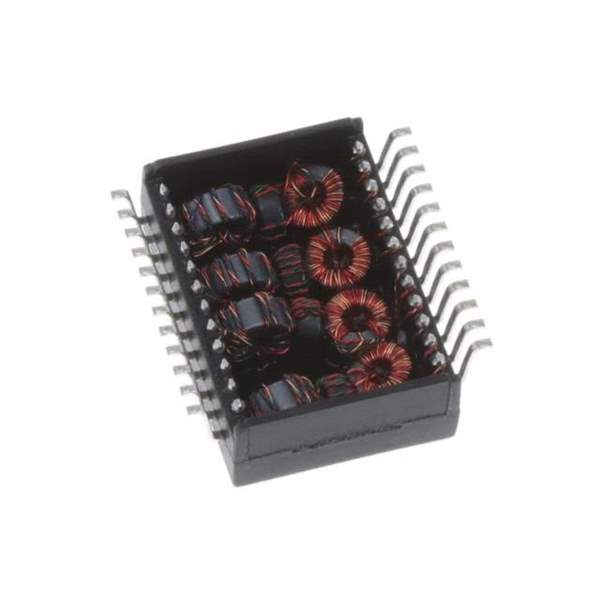

H5062NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Series Star Magnetics™
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.227" (5.76mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.1 oz (2.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-3784-1,553-3784-2,H5062NLT-ND,553-3784-6
Standard Package 300
Win Source Part Number 964183-H5062NLT
Ultra Librarian 3D Model Ultra Librarian H5062NLT CAD Model

Description

The Pulse 964183-H5062NLT is a transformer that belongs to the Star Magnetics™ series.

  • Temperature Range: 0°C to 70°C
  • Package: Tape & Reel
  • Transformer Type: Isolation and Data Interface (Encapsulated)
  • Mounting: SMD (SMT)
  • Height - Seated (Max): 0.227" (5.76mm)
  • Standard Package: 300
  • REACH: Not Affected
  • HTSUS: 8504.31.2000
  • MSL Level: 1 (Unlimited)
  • Part Number Aliases: 553-3784-1,553-3784-2,H5062NLT-ND,553-3784-6
