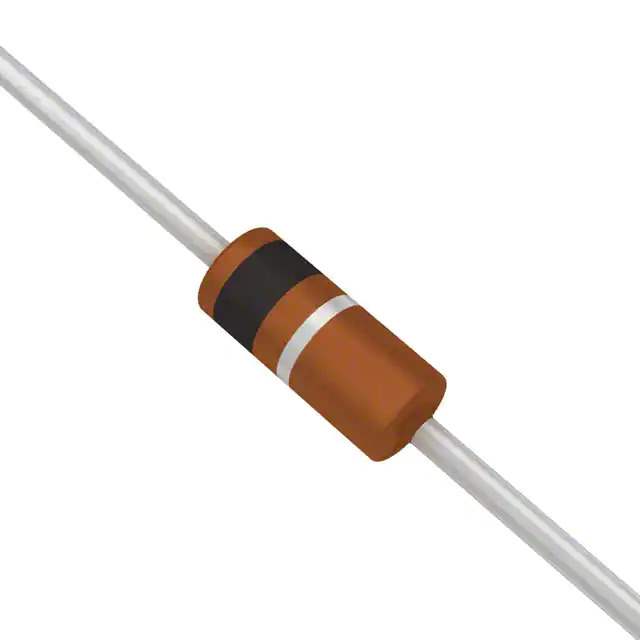

BAT86S-TAP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Series Automotive, AEC-Q101
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 900 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 5 µA @ 40 V
Capacitance @ Vr, F 8pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-35 (DO-204AH)
Operating Temperature - Junction 125°C (Max)
Base Product Number BAT86
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568969-BAT86S-TAP
Ultra Librarian 3D Model Ultra Librarian BAT86S-TAP CAD Model

Description

The BAT86S-TAP is a schottky diode from Vishay.

  • Series: BAT86 (Automotive Grade, AEC-Q101 qualified)
  • Application: Small Signal
  • Maximum Average Rectified Current: 200mA
  • Reverse Voltage: 50V
  • Forward Voltage: 900mV @ 100mA
  • Reverse Leakage Current: 5μA @ 40V
  • Capacitance: 8pF @ 1V and 1MHz
  • Operating Temperature: Up to 125°C
  • Mounting: Through-Hole
  • Package: DO-204AH (DO-35) Axial
  • Status: Active
  • Applications: Automotive, Power Supplies, Communication Systems
