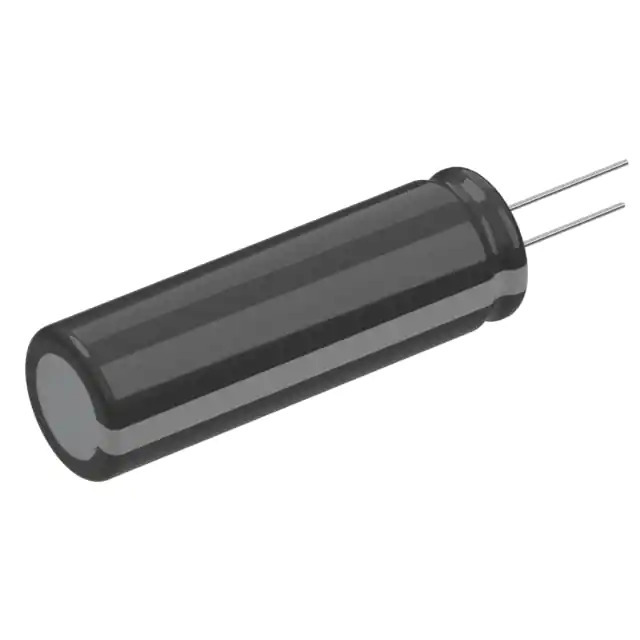

Same model may have multiple batches, images only for reference.

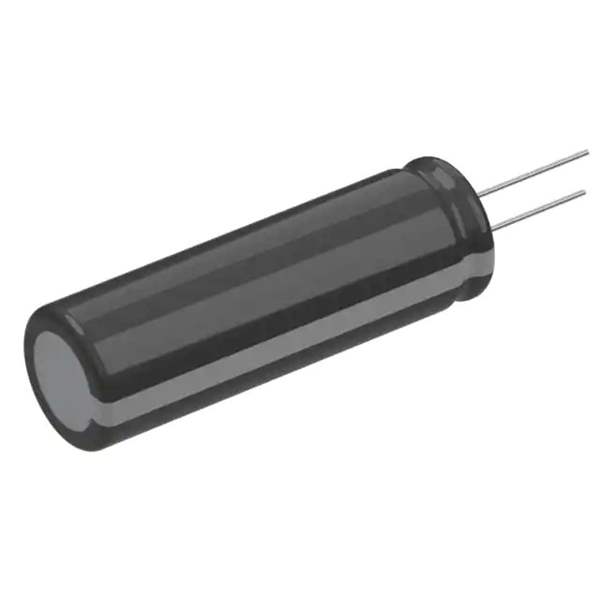

420CXW68MEFC12.5X40 Rubycon
Same model may have multiple batches, images only for reference.

420CXW68MEFC12.5X40

Part No 420CXW68MEFC12.5X40
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 420V RADIAL / 68 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series CXW
Package Bulk
Product Status Obsolete
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 420 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 520 mA @ 120 Hz
Ripple Current @ High Frequency 780 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357663-420CXW68MEFC12.5X40
Ultra Librarian 3D Model Ultra Librarian 420CXW68MEFC12.5X40 CAD Model

Description

The Rubycon 1357663-420CXW68MEFC12.5X40 is a radial, can-type aluminum electrolytic capacitor. It is part of the CXW series and is designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Series: CXW
  • Capacitance: 68 µF
  • Voltage Rating: 420 V
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Lead Spacing: 5.00mm
  • Size (Diameter): 12.50mm
  • Height (Seated): 42.00mm
  • Ripple Current (Low Frequency): 520 mA @ 120 Hz
  • Ripple Current (High Frequency): 780 mA @ 10 kHz
  • Lifetime: 5000 hours @ 105°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
