Same model may have multiple batches, images only for reference.

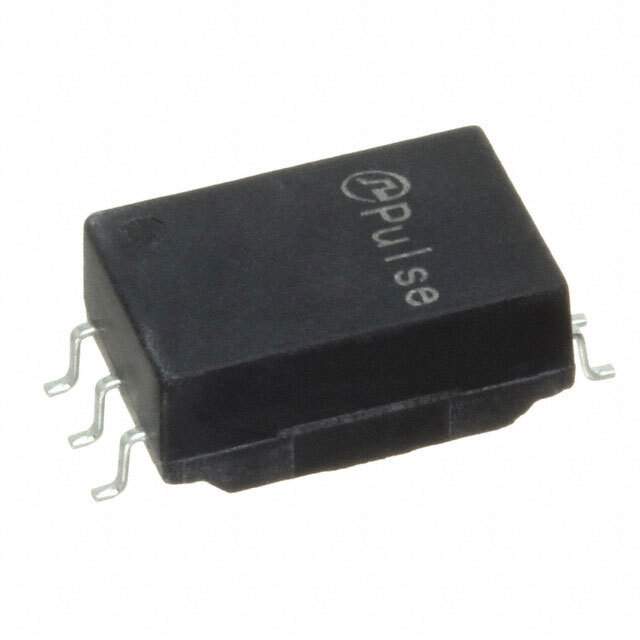

HM2108NLT Real Image
Same model may have multiple batches, images only for reference.

HM2108NLT

Part No HM2108NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description MDL, SIN, XFMR-CMC, 1:1, 4.3KV,  /  135µH Pulse Transformer 1:1 Surface Mount
Datasheet
HM2108NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Inductance 135µH
Mounting SMD (SMT)
Dimension 0.335" L x 0.524" W (8.50mm x 13.31mm)
Height - Seated (Max) 0.226" (5.75mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-HM2108NLTTR,1840-HM2108NLTDKR,1840-HM2108NLTCT,HM2108NLT-ND
Standard Package 600
Win Source Part Number 1129942-HM2108NLT
Ultra Librarian 3D Model Ultra Librarian HM2108NLT CAD Model

Description

This Pulse transformer has an inductance of 135 µH and the temperature range for operating is -40°C to 125°C.

  • Inductance: 135 µH
  • Temperature Range: -40°C to 125°C
  • Height (Seated): 0.226" (5.75mm)
  • Dimension: 0.335" L x 0.524" W (8.50mm x 13.31mm)
  • Standard Package: 600 transformers
  • Mounting: SMD (SMT)
