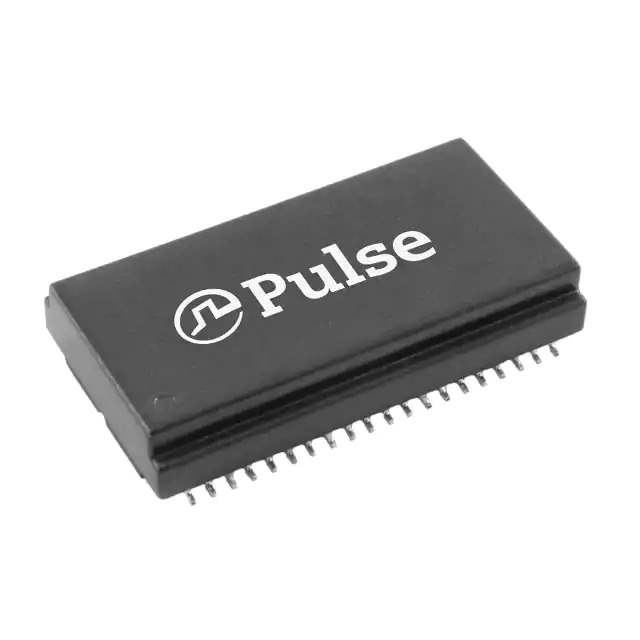

HM1234FNL Real Image
Same model may have multiple batches, images only for reference.

HM1234FNL

Part No HM1234FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HM1234FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Series Automotive, AEC-Q200
Package Tube
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.110" L x 0.608" W (28.19mm x 15.44mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 105°C
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1207528-HM1234FNL
Ultra Librarian 3D Model Ultra Librarian HM1234FNL CAD Model

Description

The 1207528-HM1234FNL is a surface mount pulse transformer designed for LAN 10/100 Base-T applications. Pulse 1207528-HM1234FNL

  • Size: 1.110" L x 0.608" W (28.19mm x 15.44mm)
  • Seated Height: 0.225" (5.72mm)
  • Inductance: 350µH
  • Operating Temperature: -40°C to 105°C
  • Package: Tube
  • Standard Package Quantity: 15 pcs
  • Status: Active
  • REACH Regulations: Unaffected
  • Applications: Automotive
  • Standard: AEC-Q200
