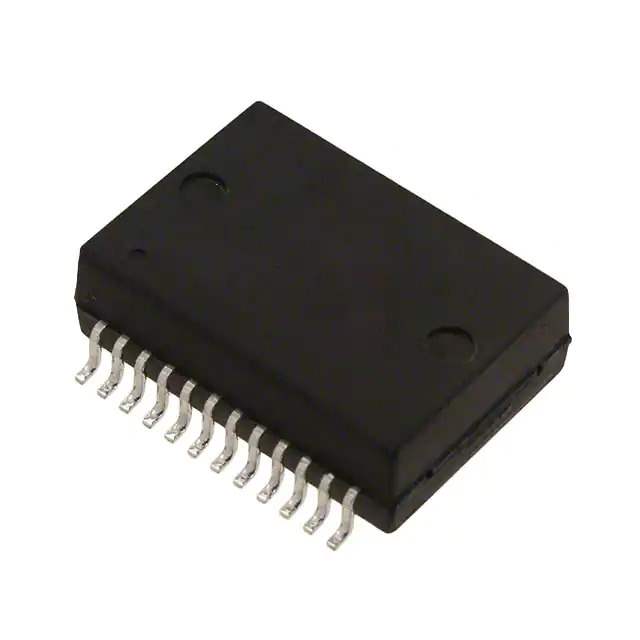

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10/100/1000 Base-T
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.217" (5.51mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 300 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139986-H5007T
Ultra Librarian 3D Model Ultra Librarian H5007T CAD Model

Description

The 139986-H5007T is a pulse transformer designed for LAN 10/100/1000 Base-T applications. It has a package size of 0.690" L x 0.480" W (17.53mm x 12.20mm) and is mounted using surface mount technology. The transformer has a maximum seated height of 0.217" (5.51mm). With a standard package of 300 pcs, it is suitable for medium volume production. The operating temperature range is 0°C to 70°C, making it suitable for a variety of environments. Although this product is obsolete, it was widely used in the past for LAN applications. It has an ECCN classification of EAR99 and is unaffected by REACH regulations. Pulse, a reputable manufacturer, produced this pulse transformer.
