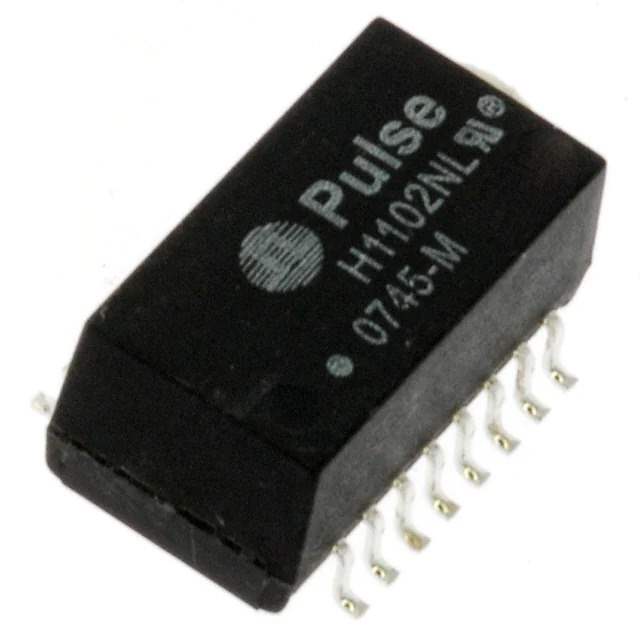

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Transformer Type LAN
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.03 oz (0.85 g)
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 595431-H1102
Ultra Librarian 3D Model Ultra Librarian H1102 CAD Model

Description

The 595431-H1102 is a pulse transformer designed for use in LAN (Local Area Network) applications.

  • GPT Description: It is a surface mount transformer with a compact size of 0.500" L x 0.280" W (12.70mm x 7.11mm), making it suitable for space-constrained designs.
  • GPT Description: This transformer is part of the Transformers - Pulse Transformers category and comes in a bulk package.
  • GPT Description: It has a maximum seated height of 0.245" (6.22mm) and a weight of 0.03 oz (0.85 g).
  • GPT Description: The operating temperature range for this transformer is 0°C to 70°C.
  • GPT Description: With its reliable performance and compact design, the 595431-H1102 is an ideal choice for LAN applications.
