STEVAL-LNBH02 Evaluation Board from STMicroelectronics

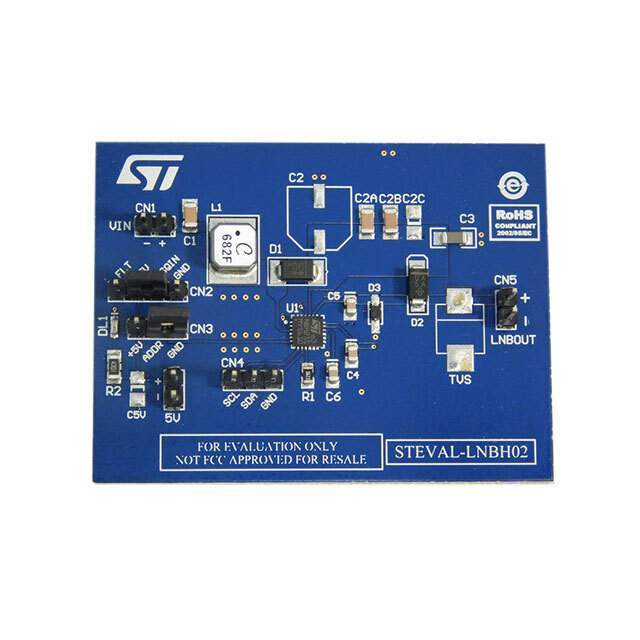

The STEVAL-LNBH02 evaluation board is a cutting-edge tool designed by STMicroelectronics to showcase the capabilities of the LNBH26PQR, a highly integrated LNB supply and control IC. This device is tailored for satellite set-top box applications and direct broadcast satellite dishes, providing a versatile and efficient solution for satellite signal reception.

The LNBH26PQR IC on the STEVAL-LNBH02 board is capable of providing the necessary voltages and signals to a low-noise block downconverter (LNB), which is essential for converting high-frequency satellite signals into lower frequencies that can be processed by a satellite receiver. The IC supports both single and dual LNB configurations, making it a flexible option for various satellite system setups.

The evaluation board is equipped with a number of features that make it a powerful tool for developers and engineers. It includes a built-in 22 kHz tone generator, which is required for switching between different satellite bands. Additionally, the board offers I2C communication support, allowing for easy integration with a microcontroller for control and monitoring purposes.

The LNBH26PQR IC also incorporates advanced diagnostics capabilities, including over-temperature protection, under and over-voltage lockout, and a current-limiting function. These features ensure reliable operation and protect the system against potential damage caused by abnormal conditions.

The STEVAL-LNBH02 evaluation board is an excellent demonstration of STMicroelectronics' commitment to providing high-quality, innovative components for the satellite reception market. With its robust design and comprehensive set of features, the board is an ideal platform for developing and testing satellite receiver systems, offering engineers the flexibility and reliability needed to design state-of-the-art satellite communication solutions.

For further information, datasheets, and technical specifications, the STEVAL-LNBH02 evaluation board and the LNBH26PQR IC can be accessed directly through the STMicroelectronics website.
