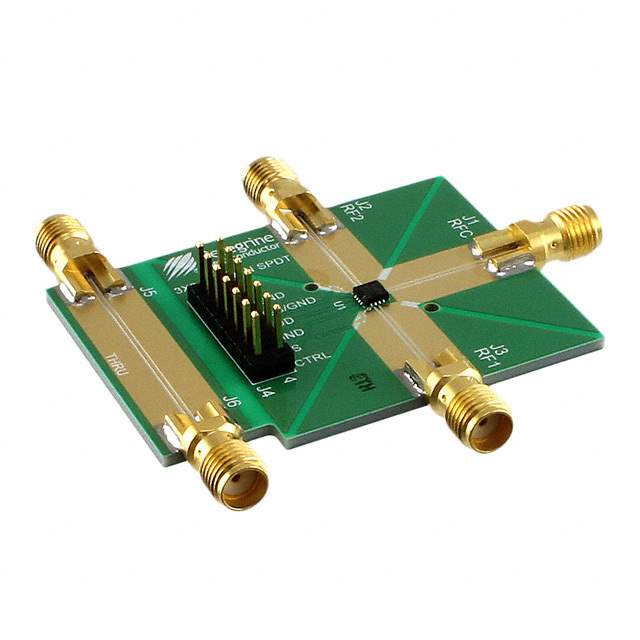

EK42520-03 Real Image
Same model may have multiple batches, images only for reference.

EK42520-03

Part No EK42520-03
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description EVAL BOARD FOR PE42520  /  PE42520 series Switch, SPDT Evaluation Board
Datasheet
EK42520-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Box
Type Switch, SPDT
Frequency 9kHz ~ 13GHz
For Use With/Related Products PE42520
Supplied Contents Board(s)
Base Product Number EK42520
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names EK42520-02,1046-1083
Standard Package 1
Win Source Part Number 1127946-EK42520-03
Ultra Librarian 3D Model Ultra Librarian EK42520-03 CAD Model

Description

The pSemi electronic component, with a Win Source Part Number of 1127946-EK42520-03, is a switch, SPDT type, and falls under the UltraCMOS®, HaRP™ series. It has a frequency range of 9kHz ~ 13GHz and is supplied with board(s). This product is suitable for use with/related products: PE42520.
