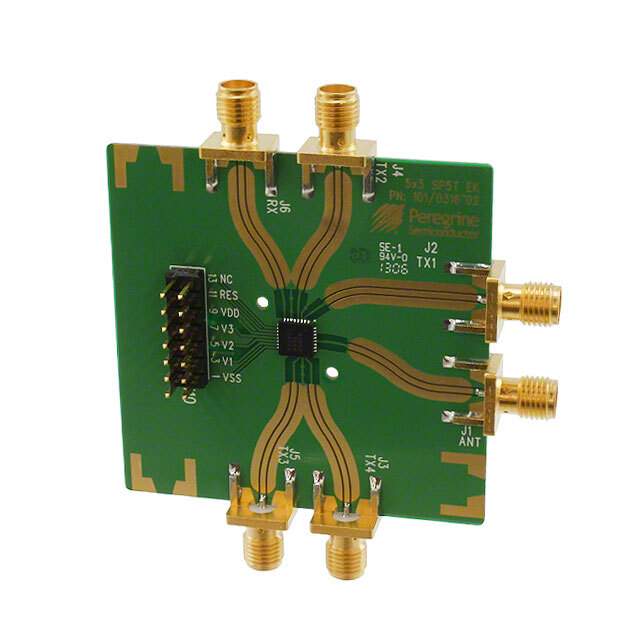

EK42850-04 Real Image
Same model may have multiple batches, images only for reference.

EK42850-04

Part No EK42850-04
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description BOARD EVAL FOR EV42850 / PE42850 series Switch, SP5T Evaluation Board
Datasheet
EK42850-04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®
Package Box
Type Switch, SP5T
For Use With/Related Products PE42850
Supplied Contents Board(s)
Base Product Number EK42850
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names 1046-1067,EK42850-03
Standard Package 1
Win Source Part Number 1108338-EK42850-04
Ultra Librarian 3D Model Ultra Librarian EK42850-04 CAD Model

Description

The UltraCMOS® SP5T switch type development board, EK42850-04, is designed and manufactured by pSemi. It has an unlimited MSL level and is ECCN EAR99 compliant. The package includes one board and is compatible with PE42850.
