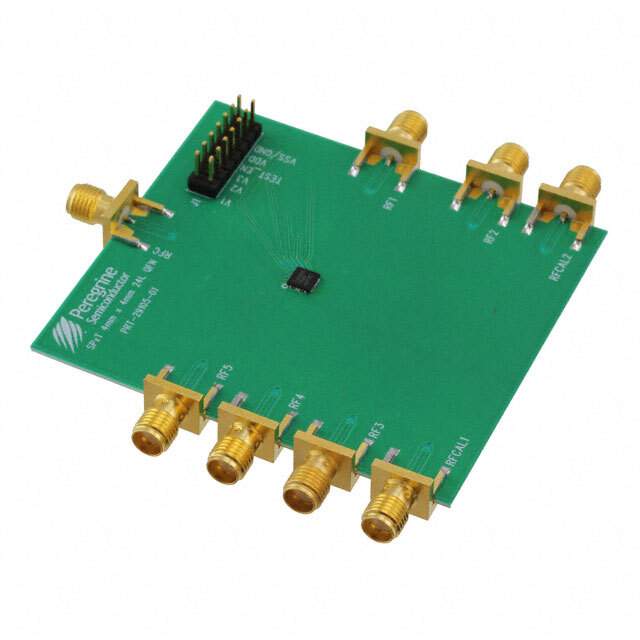

EK42452-01 Real Image
Same model may have multiple batches, images only for reference.

EK42452-01

Part No EK42452-01
Manufacturer pSemi
Catalog RF Evaluation and Development Kits, Boards
Description BOARD EVAL FOR PE42452  /  PE42452 series Switch, SP5T Evaluation Board
Datasheet
EK42452-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Box
Type Switch, SP5T
Frequency 450MHz ~ 4GHz
For Use With/Related Products PE42452
Supplied Contents Board(s)
Base Product Number EK42452
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Other Names 1046-1093
Standard Package 1
Win Source Part Number 1208553-EK42452-01
Ultra Librarian 3D Model Ultra Librarian EK42452-01 CAD Model

Description

The pSemi EK42452-01 is a SP5T switch type UltraCMOS® HaRP™ development board kit.

  • Frequency Range: 450 MHz to 4 GHz
  • For Use With/Related Products: PE42452
  • Supplied With: Board(s)
  • Package: Box
  • MSL Level: 1 (unlimited)
  • HTSUS: 8473.30.1180
  • Base Product Number: 1046-1093
