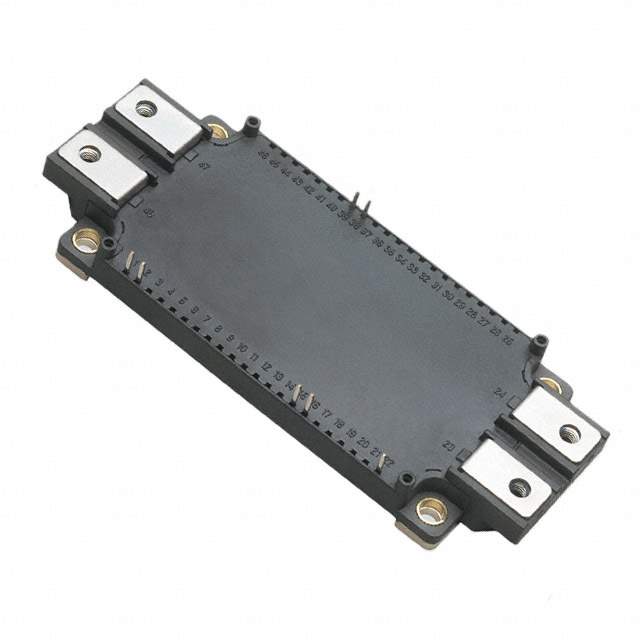

CM450DX-24S Real Image
Same model may have multiple batches, images only for reference.

CM450DX-24S

Part No CM450DX-24S
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 450A 3400W
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features IGBT Module - Half Bridge 1200 V 450 A 3400 W Chassis Mount Module
Manufacturer Powerex Inc.
Series IGBTMOD™
Package Bulk
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package Module
Case / Package Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 835-1125, CM450DX24S
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915591-CM450DX-24S
Ultra Librarian 3D Model Ultra Librarian CM450DX-24S CAD Model

Description

The CM450DX-24S from Powerex Inc. is a high-quality IGBT module that is designed for use in a variety of electronic applications.

  • Manufacturer: Powerex Inc.
  • Type: IGBT module
  • Configuration: half-bridge
  • Voltage Rating: 1200V
  • Current Rating: 450A
  • Power Rating: 3400W
  • Mounting: chassis mount
  • Package: module
  • ECCN: EAR99 compliant
  • Supply and Demand Status: balanced
  • Quantity per Package: 1
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.29.0095
