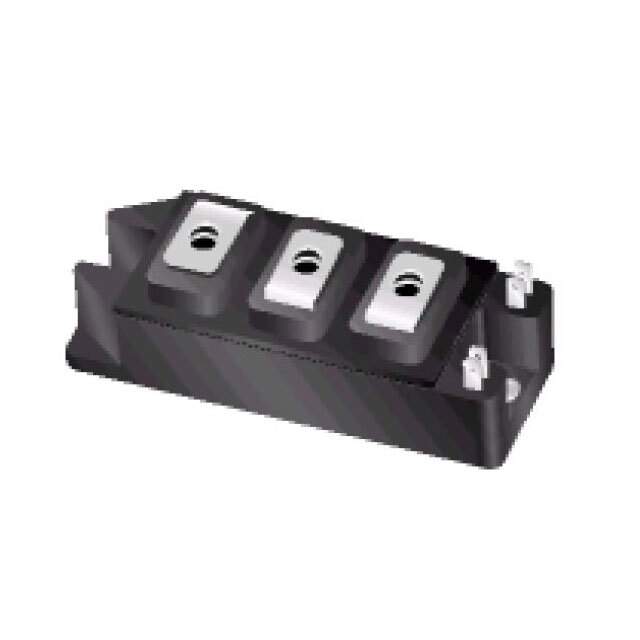

FMG2G100US60 Real Image
Same model may have multiple batches, images only for reference.

FMG2G100US60

Part No FMG2G100US60
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Modules
Description Molding Type Module
Datasheet
FMG2G100US60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Part Status Obsolete(EOL)
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 100A
Power - Max 400W
Vce(on) (Maximum) @ Vge, Ic 2.8V @ 15V, 100A
Current - Collector Cutoff (Maximum) 250μA
Input Capacitance (Cies) @ Vce 10.84nF @ 30V
Input Standard
NTC Thermistor No
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 7PM-GA
Manufacturer Package 7PM-GA
Win Source Part Number 1174739-FMG2G100US60
Manufacturer Homepage www.fairchildsemi.com
Family Name FMG2G100US60
Introduction Date October 05, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FMG2G100US60 CAD Model

Description

The FMG2G100US60 is a half-bridge configuration electronic component manufactured by Fairchild/ON Semiconductor. It has a maximum power of 400W and is designed for chassis mount. The FMG2G100US60 has a maximum collector current of 100A and a maximum collector-emitter voltage breakdown of 600V. The input capacitance of this component is 10.84nF at 30V. It is an obsolete (EOL) component and has a medium level of popularity in the market.
