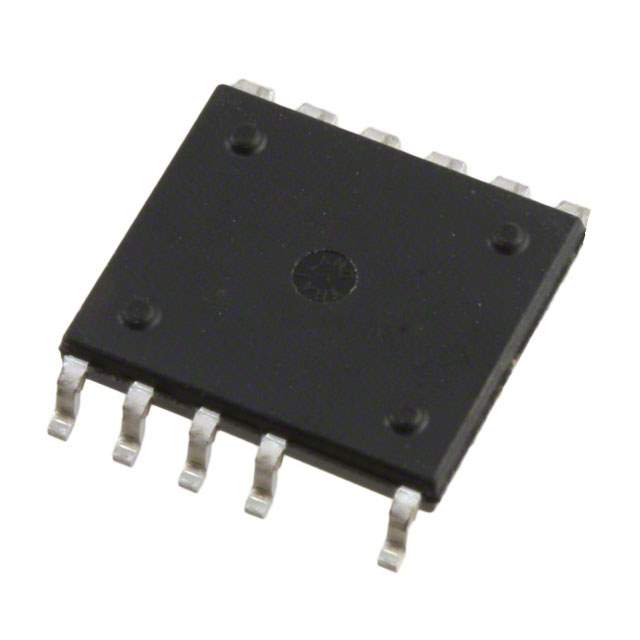

TOP270KG Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 78%
Switching Frequency 66kHz, 132kHz
Power (W) 91W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features Frequency Control
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad
Supplier Device Package 12-ESOP
Mounting Style SMT
Manufacturer Pack Quantity 48
MSL Level 3 (168 Hours)
Win Source Part Number 1271647-TOP270KG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP270KG CAD Model

Description

The Power Integrations TOP270KG is an isolated flyback topology integrated circuit that has a duty cycle of 78%.

  • Fault Protections: current limiting, over load, over temperature, over voltage, and short circuit
  • Switching Frequency: 66kHz and 132kHz
  • Supply and Demand Status: balanced
  • Applications: LED lighting, set-top boxes, and auxiliary power supplies
