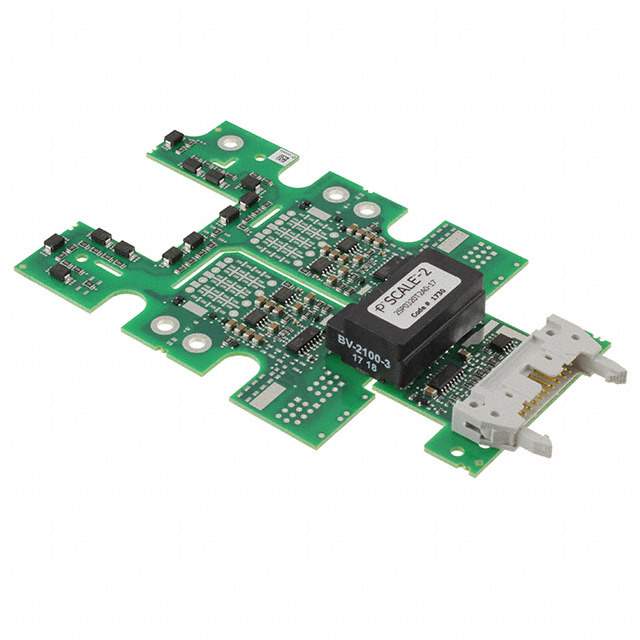

2SP0320T2C0-12 Real Image
Same model may have multiple batches, images only for reference.

2SP0320T2C0-12

Part No 2SP0320T2C0-12
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE MODULE / Half-Bridge Gate Driver IC Module
Datasheet
2SP0320T2C0-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Tray
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Voltage - Supply 14.5V ~ 15.5V
Current - Peak Output (Source, Sink) 20A, 20A
High Side Voltage - Max (Bootstrap) 1200 V
Rise / Fall Time (Typ) 7ns, 25ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case Module
Supplier Device Package Module
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Other Names 1810-1049
Standard Package 3
Win Source Part Number 1010238-2SP0320T2C0-12
Ultra Librarian 3D Model Ultra Librarian 2SP0320T2C0-12 CAD Model

Description

The SCALE™-2 is an integrated circuit (IC) for PMIC - Gate Drivers.

  • Driven Configuration: Half-bridge
  • Channels: Two independent channels
  • High Side Voltage: Up to 1200V
  • Current: Up to 20A
  • Package: Tray
  • Mounting: SMD (SMT)
