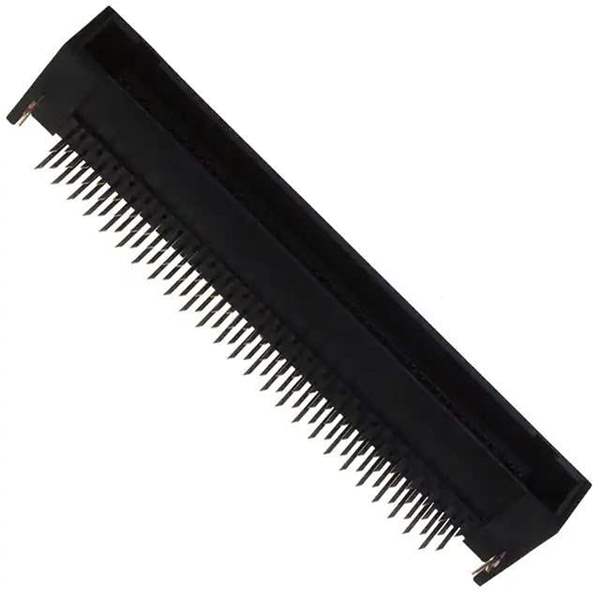

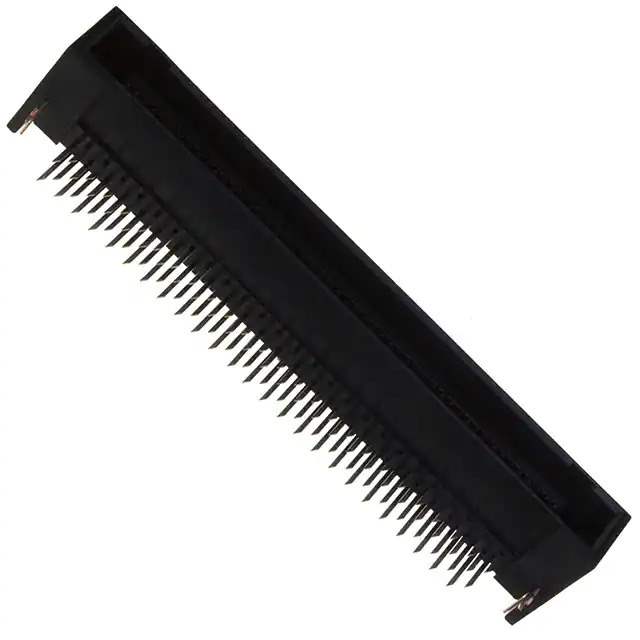

TX25-100P-LT-H1E

Name: TX25-100P-LT-H1E
Brand: JAE Electronics
SKU: 850036
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TX25-100P-LT-H1E
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN PLUG 100POS R/A GOLD
Datasheet	TX25-100P-LT-H1E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	TX25
Package	Tray
Product Status	Active
Connector Type	Plug, Center Strip Contacts
Number of Positions	100
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Height Above Board	0.354" (9.00mm)
Base Product Number	TX25-100
Standard Package	396 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	850036-TX25-100P-LT-H1E
Ultra Librarian 3D Model	Ultra Librarian TX25-100P-LT-H1E CAD Model

Description

The 850036-TX25-100P-LT-H1E is a rectangular connector array designed for board-to-board connections.

Series: TX25
Pitch: 0.050" (1.27mm)
Positions: 100
Connector Type: Plug
Contact Type: Center Strip
Board Lock: Yes
Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 4.00µin (0.100µm)
Mounting Type: Through Hole, Right Angle
Height Above Board: 0.354" (9.00mm)
Package: Tray (396 pcs)
Manufacturer: JAE Electronics
Product Status: Active
