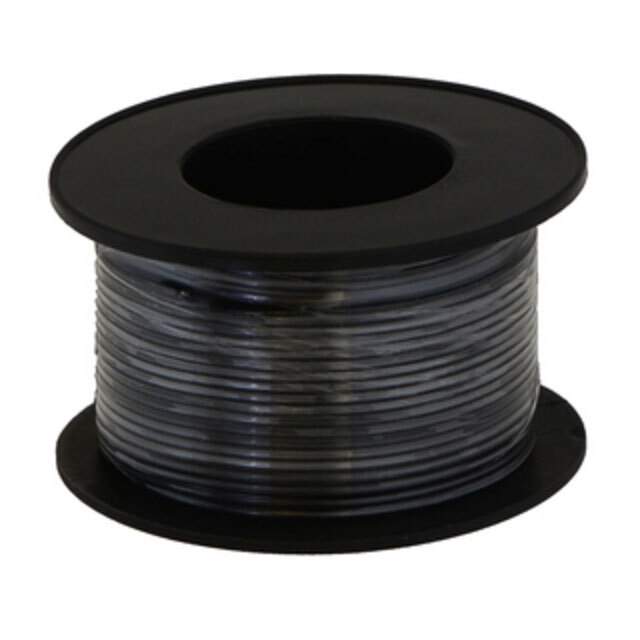

2620 Real Image
Same model may have multiple batches, images only for reference.

2620

Part No 2620
Manufacturer Pololu Corporation
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 26AWG 300V BLK 70'
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Single Conductor Cables (Hook-Up Wire)
Mfr Pololu Corporation
Package Spool
Product Status Active
Cable Type Hook-Up
Wire Gauge 26 AWG
Conductor Strand 7/34
Conductor Material Copper
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.051" (1.30mm)
Jacket (Insulation) Thickness 0.015" (0.38mm)
Length 70.00' (21.34m)
Voltage 300V
Temperature Range - Operating 80°C
Jacket Color Black
Ratings UL Style 1007
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8544.49.1500
Win Source Part Number 854833-2620
Ultra Librarian 3D Model Ultra Librarian 2620 CAD Model

Description

The 854833-2620 is a single conductor cable, specifically a hook-up wire. This cable is manufactured by Pololu Corporation.

  • Cable Type: Hook-Up Wire
  • Wire Gauge: 26 AWG
  • Length: 70.00' (21.34m)
  • Voltage Rating: 300V
  • Temperature Rating: 80°C
  • UL Style: 1007
  • Conductor Material: Copper
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Diameter: 0.051" (1.30mm)
  • Jacket Thickness: 0.015" (0.38mm)
  • Jacket Color: Black
  • Manufacturer: Pololu Corporation
  • Product Status: Active
