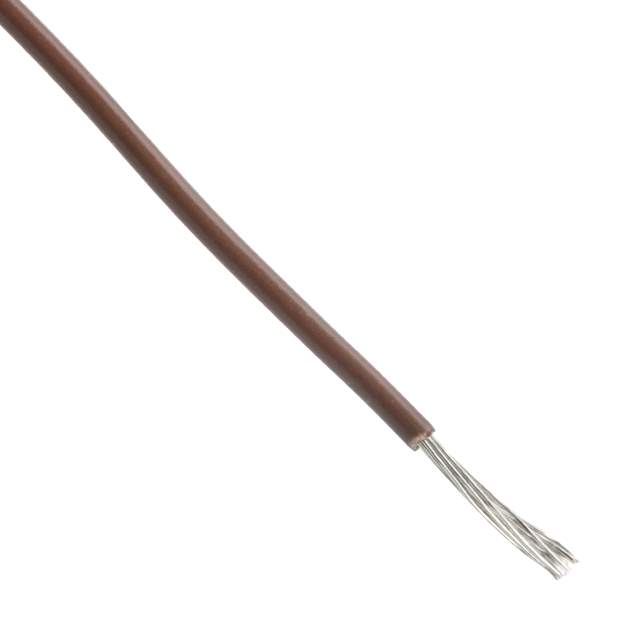

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Series MIL-W-76B Type MW
Package Spool
Cable Type Hook-Up
Wire Gauge 16 AWG
Conductor Strand 26/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.092" (2.34mm)
Jacket (Insulation) Thickness 0.016" (0.41mm)
Length 100.0' (30.5m)
Voltage 1000V
Temperature Range - Operating -40°C ~ 80°C
Jacket Color Brown
Base Product Number 1557
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 1557 BR005-ND,1557BR005
Standard Package 1
Win Source Part Number 1049636-1557 BR005
Ultra Librarian 3D Model Ultra Librarian 1557 BR005 CAD Model

Description

The 1557 BR005 is a single conductor cable (hook-up wire) electronic component with a wire gauge of 16 AWG and a length of 100.0' (30.5m).

  • Wire Gauge: 16 AWG
  • Length: 100.0' (30.5m)
  • Type: Hook-up wire
  • Voltage: 1000V
  • Jacket Color: Brown
  • Thickness: 0.016" (0.41mm)
  • Temperature Range: -40°C ~ 80°C
  • REACH: REACH unaffected
  • ECCN: EAR99
