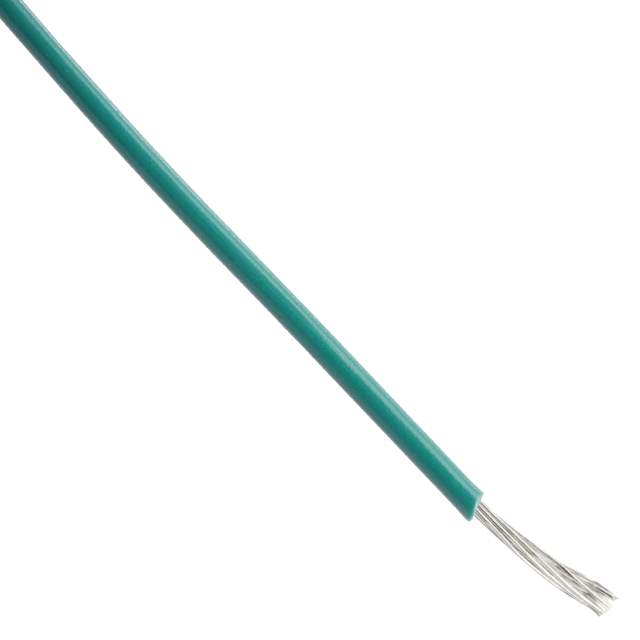

2671/26GN-100 Real Image
Same model may have multiple batches, images only for reference.

2671/26GN-100

Part No 2671/26GN-100
Manufacturer Daburn Electronics
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 26AWG GREEN 100'
Datasheet
2671/26GN-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Daburn Electronics
Cable Type Hook-Up
Wire Gauge 26 AWG
Conductor Strand 66/44
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.042" (1.07mm)
Jacket (Insulation) Thickness 0.010" (0.25mm)
Length 100.0' (30.5m)
Voltage 600V
Operating Temperature Range -40°C ~ 80°C
Jacket Color Green
Ratings UL Style 1692/1568
Win Source Part Number 766125-2671/26GN-100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2671/26GN-100 CAD Model

Description

The Daburn Electronics 766125-2671/26GN-100 is a Hook-Up cable.

  • Voltage Rating: 600V
  • Temperature Range: -40°C to 80°C
  • Wire Gauge: 26 AWG
  • Length: 100.0' (30.5m)
  • UL Style: 1692/1568
  • Conductor Material: Bare Copper
  • Conductor Strand: 66/44
  • Jacket Insulation: Poly-Vinyl Chloride (PVC)
  • Jacket Diameter: 0.042" (1.07mm)
  • Jacket Thickness: 0.010" (0.25mm)
  • Jacket Color: Green
