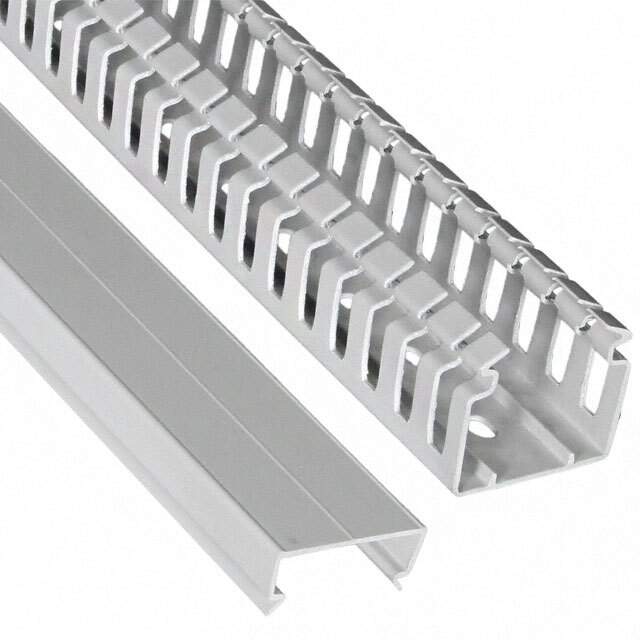

3240348 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires - Management - Wire Ducts, Raceways
Mfr Phoenix Contact
Series CD-HF
Package Bulk
Product Status Active
Wire Duct Type Solid (Raceway), 2 Piece
Height 1.575" (40.00mm)
Length 6.56' (2.00m)
Width 1.575" (40.00mm)
Mounting Type Rivet
Features Separate Snap in Lid (Included)
Material PC/ABS, Halogen Free
Color Gray
Base Product Number CD-HF 40
Standard Package 25 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.8510
Win Source Part Number 1231917-3240348
Ultra Librarian 3D Model Ultra Librarian 3240348 CAD Model

Description

The 1231917-3240348 is a wire duct raceway designed for cable and wire management.

  • Manufacturer: Phoenix Contact
  • Series: CD-HF
  • Material: PC/ABS
  • Halogen-Free: yes
  • Color: gray
  • Features: separate snap-in lid (included)
  • Length: 6.56 feet (2.00 meters)
  • Height and Width: 1.575 inches (40.00mm)
  • Mounting: rivet mounting
  • Construction: solid 2-piece
  • Status: active
