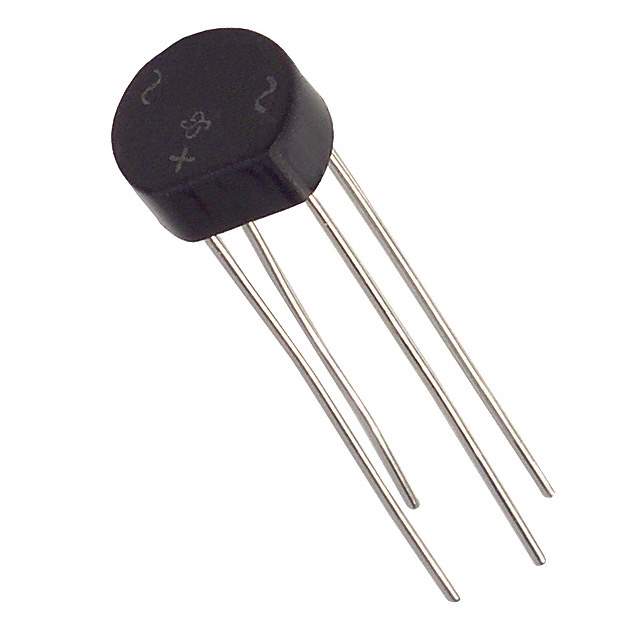

The 2W06G-E4/51 is a glass passivated Single-Phase Bridge Rectifier from Vishay Semiconductors. This rectifier is designed to convert alternating current (AC) to direct current (DC). It is commonly used in power supplies, adapters, and various electronic devices.

Applications

• General purpose rectification
• Power supplies
• Adapters
• Battery chargers
• Home appliances

Features

• Glass passivated chip junction
• High surge current capability
• Ideal for printed circuit board
• High case dielectric strength of 1500 V<sub>RMS
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912

Benefits

• Efficient AC to DC conversion
• Reliable performance under high surge conditions
• Easy to integrate into PCB designs
• Provides electrical isolation
• Environmentally conscious due to compliance standards

Additional Details

The 2W06G-E4/51 features a repetitive peak reverse voltage of 600V and a maximum average forward rectified current of 2.0A. It's designed for through-hole mounting and comes in a WOG package. The operating temperature range is -55°C to +150°C. The maximum forward voltage drop is 1.0V at 1.0A.

This bridge rectifier offers a robust and reliable solution for AC to DC conversion needs in a variety of applications. Its high surge current capability ensures protection against voltage spikes, and its compact size makes it suitable for space-constrained designs.
