Same model may have multiple batches, images only for reference.

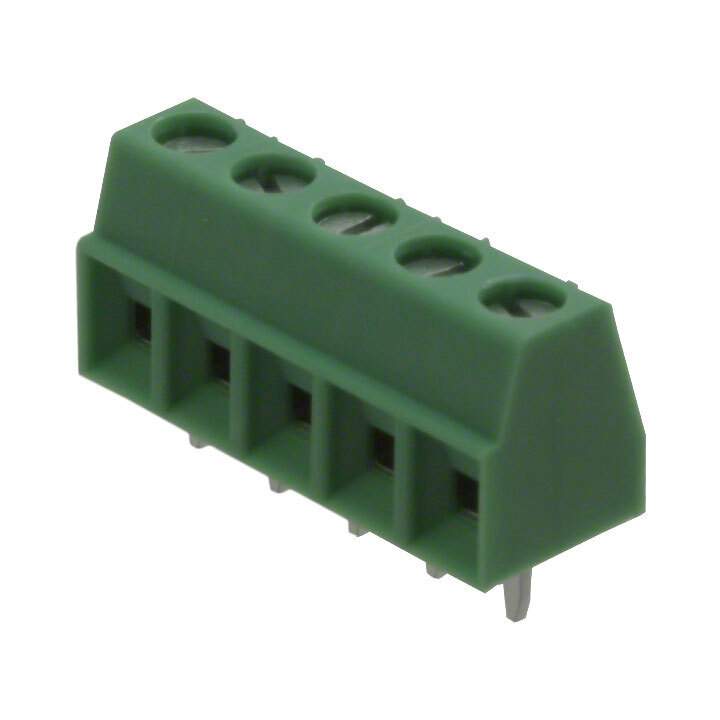

1727049 Real Image
Same model may have multiple batches, images only for reference.

1727049

Part No 1727049
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 5P SIDE ENT 3.81MM PCB / 5 Position Wire to Board Terminal Block Horizontal with Board 0.150" (3.81mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 5
Pitch 0.150" (3.81mm)
Mating Orientation Horizontal with Board
Current 13.5 A
Voltage 300 V
Wire Gauge 16-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Screw Thread M2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1727049-NDR,277-1950,MKDS1/5-3,81,MKDS 1/5-3,81,1727049-ND
Standard Package 250
Win Source Part Number 1332284-1727049
Ultra Librarian 3D Model Ultra Librarian 1727049 CAD Model

Description

The Phoenix Contact 1332284-1727049 is a green-colored wire-to-board terminal block with a pitch of 0.150 inches.

  • Positions Per Level: 5
  • Voltage Rating: 300 V
  • Housing Material: Polyamide (PA) and Nylon
  • Current Rating: 13.5 A
  • Termination: Screw with a Rising Cage Clamp
  • Screw Thread: M2
  • Torque of Screw: 0.22-0.25 Nm (1.9-2.2 Lb-In)
  • Wire Gauge: 16-30 AWG
  • Mounting: Through-Hole
  • Mating Orientation: Horizontal with the Board
  • ROHS3 Standards: Compliant
