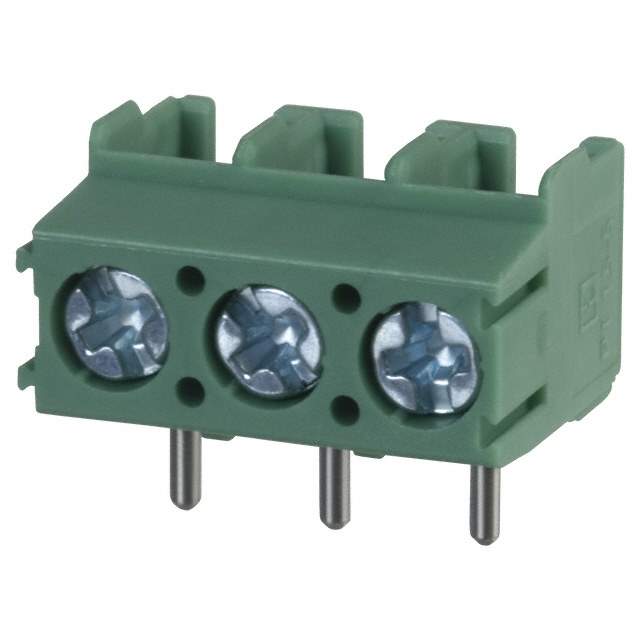

1935323 Real Image
Same model may have multiple batches, images only for reference.

1935323

Part No 1935323
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Conn PC Terminal Block 3 POS 5mm Solder RA Thru-Hole 17.5A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CB, UL, VDE
Color Green
Contact Material Copper
Contact Plating Tin
Current 18 A
Current Rating 17.5 A
Depth 11.4 mm
Flammability Rating UL94 V-0
Height 9 mm
Housing Color Green
Housing Material Polyamide
Insulation Material Nylon
Lead Free Lead Free
Length 11.3 mm
Material Nylon
Max Current Rating 17.5 A
Max Supply Voltage 250 V
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Levels 1
Number of Pins 3
Number of Poles 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Right Angle
Pitch 5 mm
RoHS Compliant
Stripping Length 5 mm
Termination Solder
Voltage 300 V
Voltage Rating 250 V
Weight 2.869992 g
Width 15 mm
Wire/Cable Gauge 14 AWG
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1114722-1935323
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1935323 CAD Model

Description

The Phoenix Contact 1114722-1935323 is a 3-position terminal block with a pitch of 5mm and a green color.

  • Number of Positions: 3
  • Pitch: 5mm
  • Color: Green
  • Number of Levels: 1
  • Number of Rows: 1
  • Termination: Solder
  • Contact Material: Copper
  • Voltage Rating: 250V
  • Current Rating: 17.5A
  • Length: 11.3mm
  • Height: 9mm
  • Housing Material: Polyamide
  • Approvals: CB, UL, VDE
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Flammability Rating: UL94 V-0
