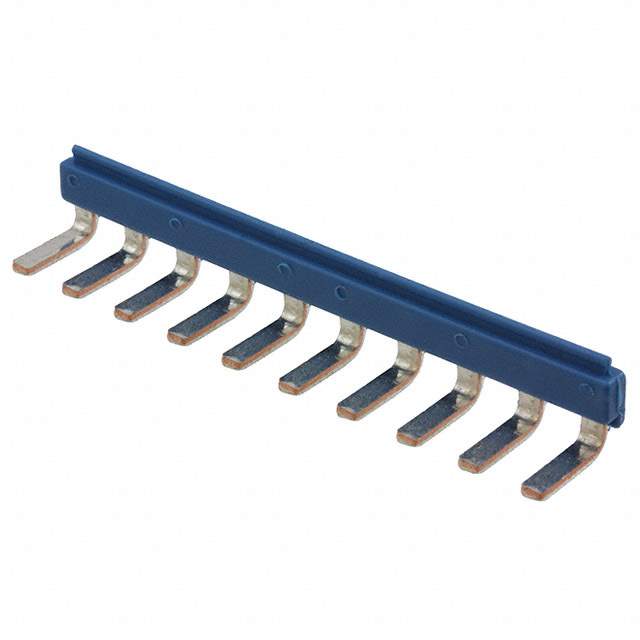

2716680 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Terminal Block Accessories - Terminal Block Jumpers
Mfr Phoenix Contact
Series CLIPLINE
Package Bulk
Product Status Active
Type Terminal Block, Cross Connection
Number of Positions 10
Pitch 0.242" (6.15mm)
Style Flat Pins - Angled
For Use With/Related Products CLIPLINE DIK, DIKD, DLKB, DOK, DOKD and VIOK Series
Contact Material Copper
Color Blue
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 869997-2716680
Ultra Librarian 3D Model Ultra Librarian 2716680 CAD Model

Description

The CLIPLINE terminal block jumper is a useful accessory for connecting multiple terminal blocks in electronic applications.

  • Pitch: 0.242" (6.15mm)
  • Compatible Series: CLIPLINE DIK, DIKD, DLKB, DOK, DOKD, and VIOK series
  • Positions: 10
  • Material: Copper
  • Pins: Flat, angled
  • Package: 10 pcs
