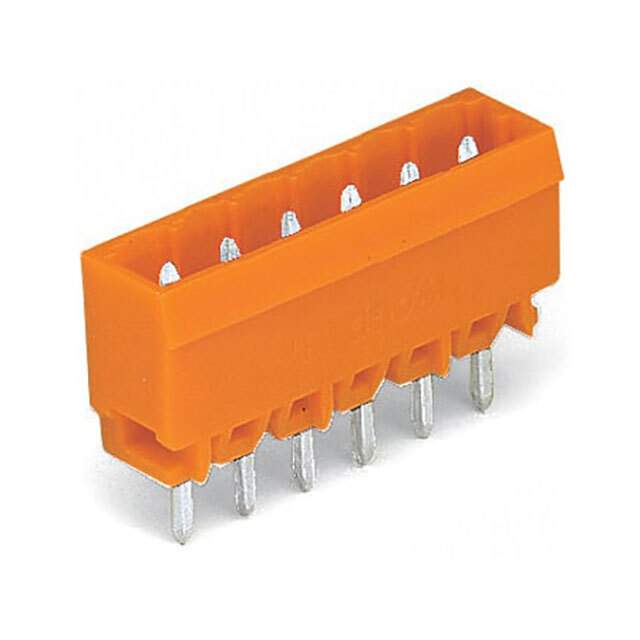

231-338/001-000 Real Image
Same model may have multiple batches, images only for reference.

231-338/001-000

Part No 231-338/001-000
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 10 A
Voltage - UL 600 V
Color Orange
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.197" (5.00mm)
Insulation Height 0.472" (12.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names 0231-0338/0001-0000,0231338/001000,2943-231-338/001-000,2946-231-338/001-000,2943-231-338/001-000-ND,231338/001000,0231-338/001-000,51149147
Standard Package 1
Win Source Part Number 1118273-231-338/001-000
Ultra Librarian 3D Model Ultra Librarian 231-338/001-000 CAD Model

Description

The WAGO Corporation electronic component with Win Source Part Number 1118273-231-338/001-000 is a connector and terminal block with 8 positions per level and 8 levels.

  • Manufacturer: WAGO Corporation
  • Win Source Part Number: 1118273-231-338/001-000
  • Connector Type: Terminal Block, Header
  • Positions per Level: 8
  • Number of Levels: 8
  • Header Type: Male Pins, Shrouded on 4 Sides
  • Pitch: 0.200" (5.08mm)
  • Header Orientation: Vertical
  • Termination Style: Solder
  • Current (IEC): 12A
  • Current (UL): 10A
  • Voltage (IEC): 630V
  • Voltage (UL): 600V
  • Contact Mating Finish: Tin
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -60°C ~ 100°C
