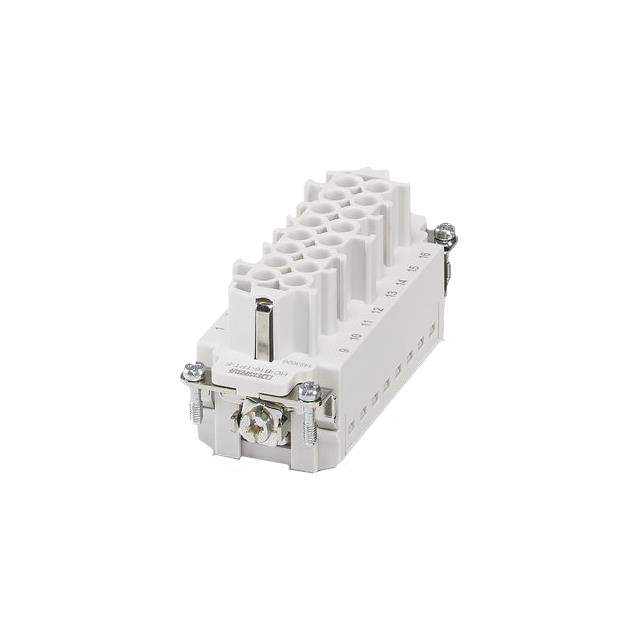

1423020 Phoenix Contact
Same model may have multiple batches, images only for reference.

1423020

Part No 1423020
Manufacturer Phoenix Contact
Catalog Heavy Duty Connectors
Description CONTACT INSERT, SIZE: B16, NUMBE
Datasheet
1423020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309951-1423020
Manufacturer Phoenix Contact
Category Connectors, Interconnects > Heavy Duty Connectors > Heavy Duty Connector Inserts, Modules
Packaging Bulk
Part Status Active
Connector Type Insert
Gender Female
Number of Positions 16+Ground
Size B16
Termination Style Push In
Voltage Rating 500V
Current Rating (Amps) 10A
Ultra Librarian 3D Model Ultra Librarian 1423020 CAD Model

Description

Advantages
• Easy installation without tools, even when mounted, with push-in connection technology
• Shortest installation time compared to other connection technologies
• Quick and effortless wiring, in particular when space is tight
• Automatic cabling with robots possible
• Safe wiring and operation with color-coded actuators
• Shock and vibration-resistant in accordance with DIN EN 61373
• Cost-effective and fast coding with plastic profiles
• Double conductor connection per pos.
