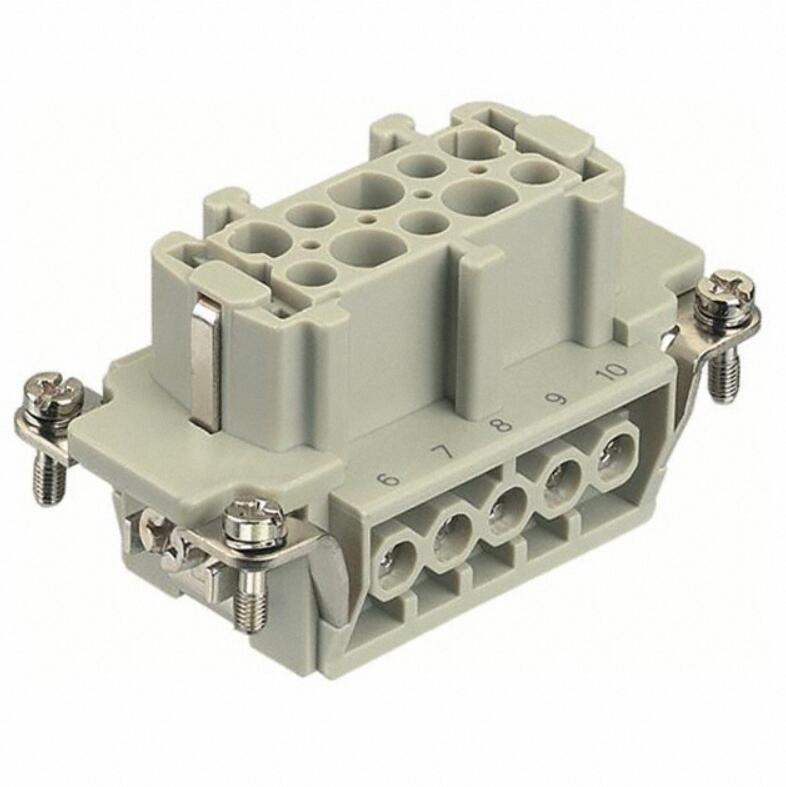

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1197078-09330102701
Win Source Part Number Cross
Category Connectors, Interconnects Heavy Duty Connectors Heavy Duty Connector Inserts, Modules
Manufacturer HARTING
Series Han® E
Package Bulk
Product Status Active
Connector Type Insert
Gender Female
Number of Positions 10+Ground
Size 10B
Ultra Librarian 3D Model Ultra Librarian 09330102701 CAD Model

Description

The Han® E series connector inserts from HARTING are designed for heavy-duty applications.

  • Gender: Female
  • Configuration: 10+Ground
  • Series: Han® E
  • Package: Bulk
