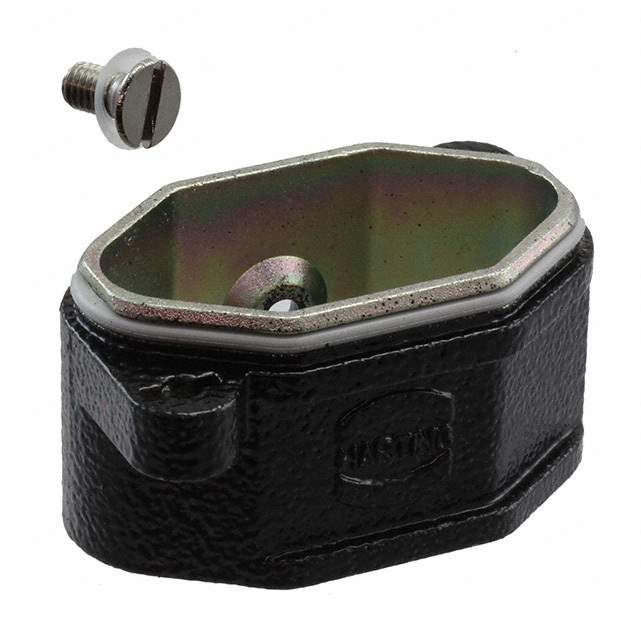

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® HPR
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 3A
Lock Location Screw Locks on Hood
Thread Size -
Size / Dimension -
Housing Color Black
Features -
Ingress Protection IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material Zinc, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 09407030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380456-09407030301
Ultra Librarian 3D Model Ultra Librarian 09407030301 CAD Model

Description

The HARTING Han® HPR Base - Panel Mount is a high-quality connector housing designed for heavy-duty applications.

  • Series: Han® HPR
  • Entry Style: Bottom Entry
  • Mounting Type: Panel Mount
  • Housing Material: Zinc Die Cast
  • Ingress Protection: IP65/IP68/IP69K
  • For Use With/Related Products: Han® HPR Inserts
  • Housing Finish: Powder Coated
  • Operating Temperature: -40°C ~ 125°C
  • Manufacturer: HARTING
