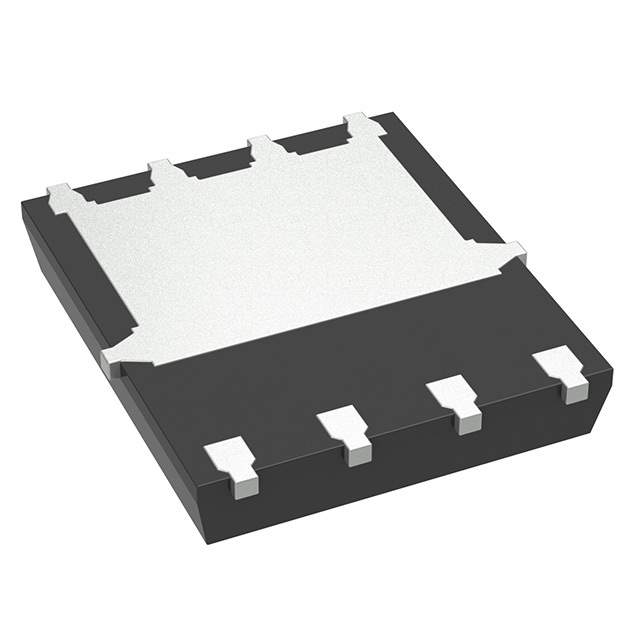

PJQ5476AL_R2_00001

Name: PJQ5476AL_R2_00001
Brand: Panjit
SKU: 1085305
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PJQ5476AL_R2_00001
Manufacturer	Panjit
Catalog	Transistors - FETs, MOSFETs - RF
Description	100V N-CHANNEL ENHANCEMENT MODE / N-Channel 100 V 6.5A (Ta), 42A (Tc) 2W (Ta), 83W (Tc) Surface Mount DFN5060-8
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Panjit International Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	6.5A (Ta), 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	25Ohm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1519 pF @ 30 V
Power Dissipation (Max)	2W (Ta), 83W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DFN5060-8
Package / Case	8-PowerVDFN
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	3757-PJQ5476AL_R2_00001DKR,3757-PJQ5476AL_R2_00001CT,3757-PJQ5476AL_R2_00001TR
Standard Package	3,000
Win Source Part Number	1085305-PJQ5476AL_R2_00001
Ultra Librarian 3D Model	Ultra Librarian PJQ5476AL_R2_00001 CAD Model

Alternative Products

Description

The PJQ5476AL_R2_00001 electronic component is a MOSFET transistor manufactured by Panjit International Inc.

Channel Type: N-channel FET
Drain to Source Voltage: 100 V
Continuous Drain Current: 6.5A (Ta), 42A (Tc)
Rds On (Max) @ Id, Vgs: 25Ohm @ 20A, 10V
Maximum Gate-Source Voltage: ±20V
Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
Operating Temperature Range: -55°C ~ 150°C (TJ)
