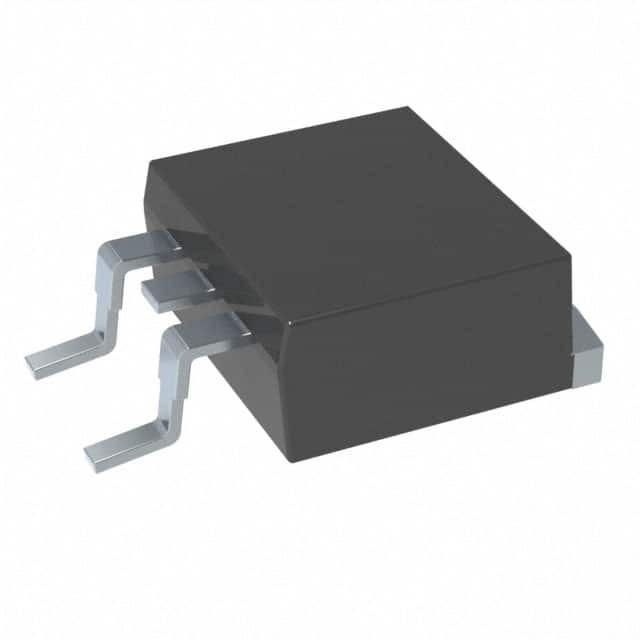

MBR20150DC_R2_00001 Panjit
Same model may have multiple batches, images only for reference.

MBR20150DC_R2_00001

Part No MBR20150DC_R2_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description 20 AMPERS SCHOTTKY BARRIER RECTI / Diode Array 1 Pair Common Cathode Schottky 150 V 20A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Datasheet
MBR20150DC_R2_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Series MBR2040DC
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 150 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR20150DC_R2_00001TR,3757-MBR20150DC_R2_00001CT,3757-MBR20150DC_R2_00001DKR
Standard Package 800
Win Source Part Number 1076505-MBR20150DC_R2_00001
Ultra Librarian 3D Model Ultra Librarian MBR20150DC_R2_00001 CAD Model

Description

The MBR20150DC_R2_00001 is a product of Panjit International Inc. It is a fast recovery diode with a package of tape & reel.

  • Standard Package: 800
  • Mounting Style: SMD (SMT)
  • Diode Type: Schottky diode
  • Maximum DC Reverse Voltage (Vr): 150V
  • Maximum Forward Voltage (Vf) @ 10A: 900mV
  • Current Reverse Leakage @ Vr: 50µA @ 150V
  • Operating Temperature Range: -50°C to 150°C
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current (Io): 20A per diode
  • Package/Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: TO-263
  • MSL Level: not applicable
  • HTSUS: 8541.10.0080
  • Alternative parts (cross-reference): None
