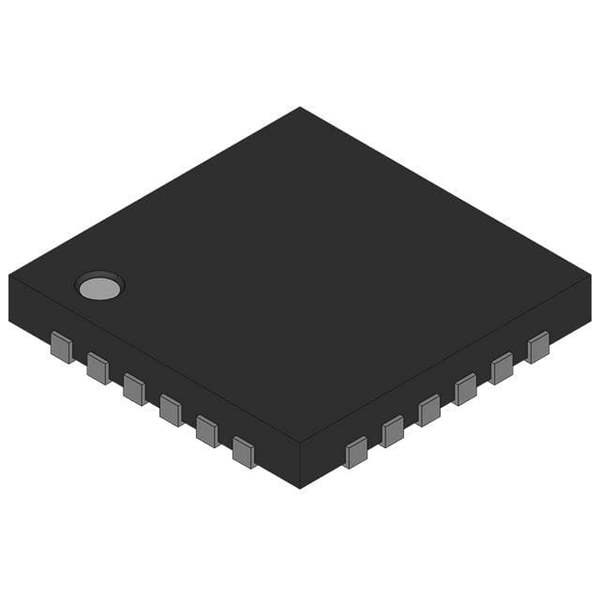

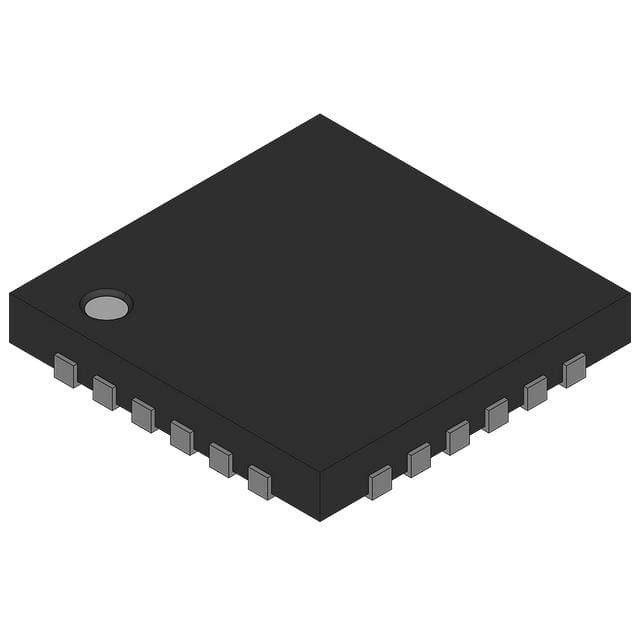

The ON Semiconductor NCV78723MW0R2G is a highly efficient power integrated module designed to meet the rigorous demands of automotive applications. This compact and robust module integrates a gate driver and two MOSFETs in a single package, optimizing performance for motor drive applications in modern vehicles.

Key Features

• High Integration: The NCV78723MW0R2G combines a dual-channel gate driver with two power MOSFETs, reducing the component count and simplifying the design process for engineers.
• Advanced Protection: It includes under-voltage lockout, over-temperature shutdown, and fault reporting to ensure reliable operation under harsh automotive conditions.
• Optimized Design: The module's design prioritizes high power density and low thermal resistance, ensuring efficient heat dissipation and consistent performance.
• Automotive Grade: This product is AEC-Q100 qualified, meaning it meets the stringent quality standards required for automotive electronics.

Applications

The NCV78723MW0R2G is ideally suited for a variety of automotive applications, including but not limited to:

• Electric Power Steering (EPS)
• Electric Water Pumps
• Electric Oil Pumps
• Electric Fans

Technical Specifications

Conclusion

The ON Semiconductor NCV78723MW0R2G is a powerful solution for designers seeking a high-performance, reliable, and space-efficient power integrated module for automotive motor drive applications. Its combination of integration, protection, and automotive-grade reliability makes it an ideal choice for modern vehicle systems.
