Same model may have multiple batches, images only for reference.

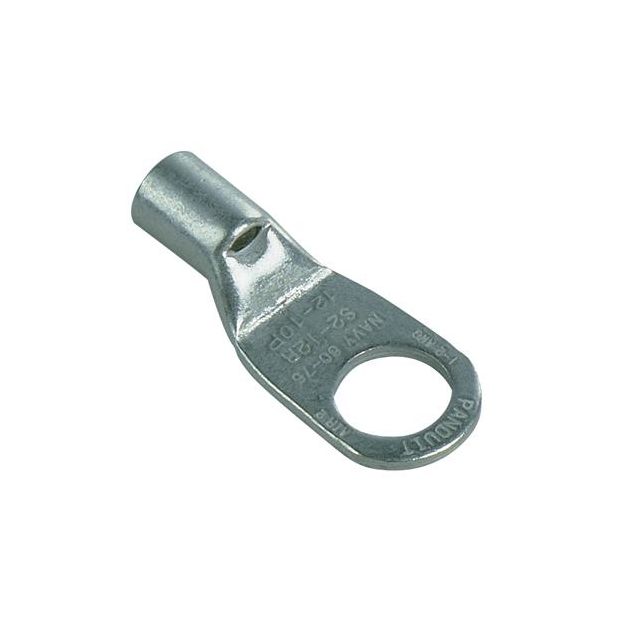

S250-56R-5 Real Image
Same model may have multiple batches, images only for reference.

S250-56R-5

Part No S250-56R-5
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S250-56R-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 5/16 Stud
Thickness 0.140" (3.56mm)
Width - Outer Edges 1.170" (29.72mm)
Length - Overall 1.010" (25.65mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 250MCM (kcmil)
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S250
Other Names 298-23451,S250-56R-5
Standard Package 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285147-S250-56R-5
Ultra Librarian 3D Model Ultra Librarian S250-56R-5 CAD Model

Description

The Panduit Corp S250-56R-5 is a flat-sided, non-insulated ring connector terminal that is crimped with a funnel opening. Panduit Corp

  • Termination: Crimp with a Funnel Opening
  • Contact Finish: Tin
  • Contact Material: Copper
  • Wire Gauge: 250MCM (kcmil)
  • Thickness: 0.140 inches (3.56mm)
  • Width: 1.170 inches (29.72mm)
  • Length: 1.010 inches (25.65mm)
  • Series: Pan-Term
  • Package: Bulk
  • Quantity: 5
  • Terminal Type: Flat-Sided
  • Stud/Tab Size: 5/16 Stud
  • Mounting Type: Free Hanging (In-Line)
  • REACH Status: Unaffected
