Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Panasonic Industrial Automation Sales
Packaging Bulk
Status Obsolete(EOL)
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 15mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 20μs
Temperature Range - Operating -25°C to 55°C
Mounting Chassis Mount
Type Unamplified
Win Source Part Number 1089687-PM-L44-C3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PM-L44-C3 CAD Model

Description

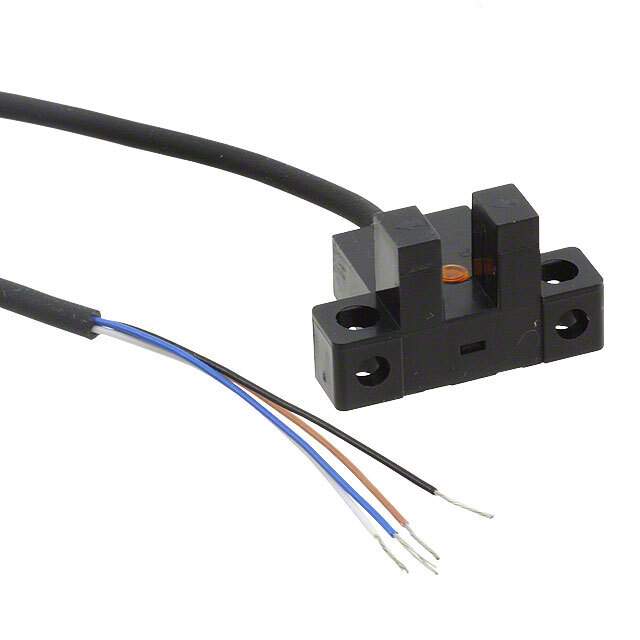

The Panasonic PM-L44-C3 is a small U-shaped micro photoelectric sensor with an amplifier built-in. It is a through-beam sensor with a detection range of 0.197 inches (5mm). The sensor has two selectable operating modes: dark-ON and light-ON. In dark-ON mode, the sensor output is turned ON when the light beam is blocked. In light-ON mode, the sensor output is turned ON when the light beam is present.

The PM-L44-C3 sensor is housed in a compact and lightweight plastic case. It has a slot type design that makes it easy to mount and install. The sensor is also very easy to use. Simply connect the power supply and load to the appropriate terminals, and the sensor will start operating.

The PM-L44-C3 sensor is ideal for a wide range of applications, including:

Object detection and counting Machine automation Conveyer belt monitoring Packaging and assembly lines Robotics Safety and security systems The sensor is also very versatile and can be used with a variety of materials, including metals, plastics, glass, and paper.

Here are some of the key features and benefits of the PM-L44-C3 sensor:

Compact and lightweight design Slot type design for easy mounting and installation Two selectable operating modes: dark-ON and light-ON Wide detection range of 0.197 inches (5mm) High repeatability and accuracy Long service life RoHS compliant The PM-L44-C3 sensor is a reliable and high-quality sensor that is ideal for a wide range of applications. It is easy to use and install, and it provides accurate and repeatable detection.

Here are some specific examples of how the PM-L44-C3 sensor can be used:

In a machine automation application, the sensor can be used to detect the presence of a workpiece on a conveyor belt. In a packaging and assembly line application, the sensor can be used to count the number of products that have been packaged or assembled. In a robotics application, the sensor can be used to detect the presence of an object in the robot's workspace. In a safety and security system, the sensor can be used to detect the presence of an intruder in a restricted area. The PM-L44-C3 sensor is a versatile and reliable sensor that can be used in a wide variety of applications. It is a good choice for any application where accurate and repeatable detection is required.
