Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Response Time 4μs, 4μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 1035875-EE-SX1115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EE-SX1115 CAD Model

Description

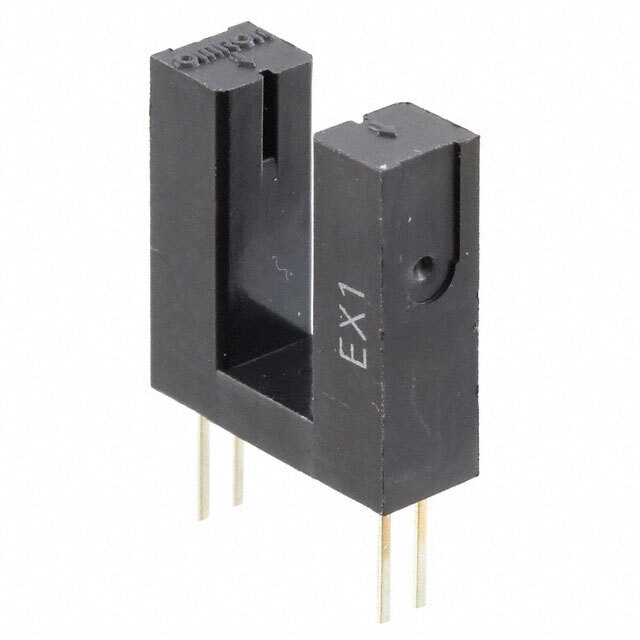

The Omron Electronics Inc-EMC Div EE-SX1115 sensor is a transmissive type sensor that has a sensing distance of 5mm.

  • Sensing Distance: 5mm
  • Response Time: 4μs
  • Operating Temperature: -25°C to 85°C
  • Type: Unamplified
  • Maximum Current Collector: 20mA
  • Maximum Forward Current: 50mA
  • Mounting Type: through hole
