Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer onsemi
Packaging Tube
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 450 mV @ 25 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 mA @ 15 V
Mounting Through Hole
Case / Package TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number MBR2515
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MBR2515LOS
Standard Package 50
Win Source Part Number 1325590-MBR2515L
Ultra Librarian 3D Model Ultra Librarian MBR2515L CAD Model

Description

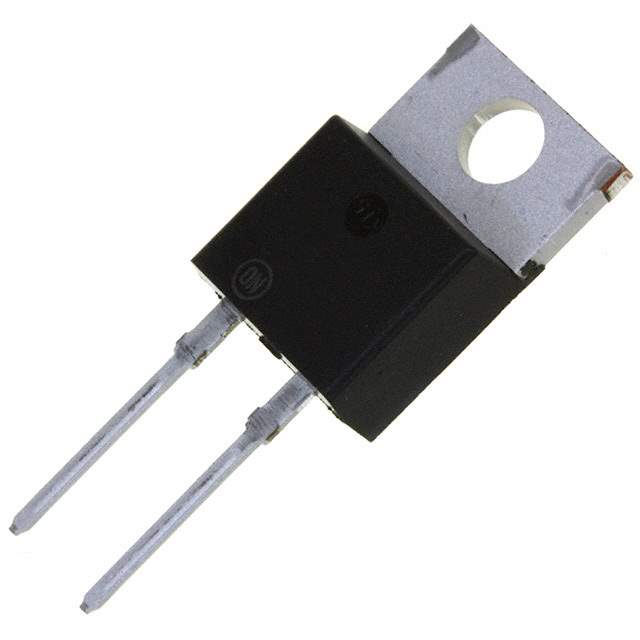

Introducing the MBR2515L Schottky Barrier Rectifier from ON Semiconductor

The MBR2515L is a robust Schottky barrier rectifier designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This high-performance diode is engineered to offer efficient and fast switching capabilities, making it an ideal choice for a variety of applications including power supply, DC-DC converters, and high-frequency inverters.

With a maximum repetitive peak reverse voltage of 15V and an average forward rectified current of 25A at TA = 125°C, the MBR2515L is capable of handling high current requirements with ease. Its low forward voltage drop minimizes power loss and improves efficiency, which is critical for energy-sensitive designs.

The device is housed in a TO-220AB package, which not only ensures a compact footprint but also provides reliable thermal performance. The MBR2515L's ability to operate over a wide temperature range, from -65°C to 175°C, makes it suitable for harsh environments and demanding applications.

Key features of the MBR2515L include:

  • Peak Repetitive Reverse Voltage (VRRM): 15V
  • Average Forward Rectified Current (IO): 25A
  • Low Forward Voltage Drop
  • High Surge Capacity
  • Operating Junction Temperature Range: -65°C to 175°C
  • Package: TO-220AB
  • Guard-Ring for Stress Protection

The device also incorporates a guard-ring die construction that enhances its reliability by providing voltage stress protection. This feature is particularly important in applications where overvoltage conditions may occur, ensuring the longevity and stability of the rectifier.

ON Semiconductor's commitment to quality and performance is reflected in the MBR2515L's design, making it a trustworthy component for power management tasks. Whether it's for use in consumer electronics, automotive systems, or industrial equipment, the MBR2515L delivers the efficiency and durability that engineers require for their power rectification needs.

With the MBR2515L, ON Semiconductor continues to set the standard in power semiconductor technology, providing components that enhance system performance while reducing energy consumption.
