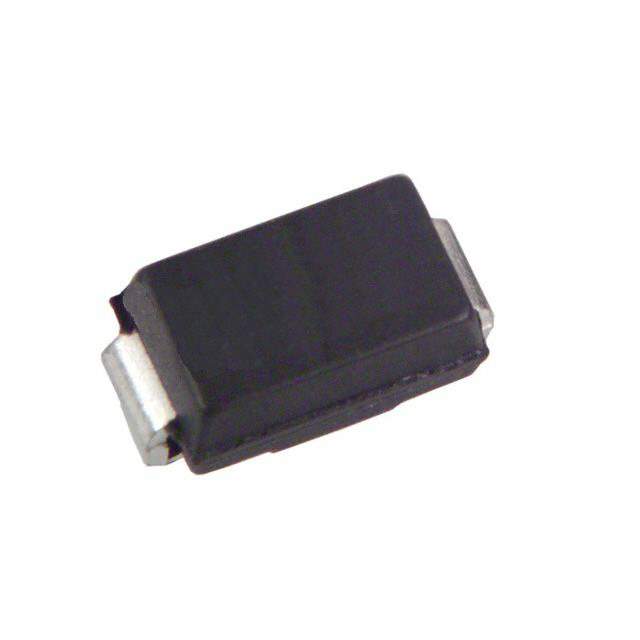

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 550mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 2mA @ 40V
Capacitance @ Vr, F 70pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package NMiniP2-J1
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 207242-MA738-(TX)
Ultra Librarian 3D Model Ultra Librarian MA738-(TX) CAD Model

Description

The Panasonic Electronic Components MA738-(TX) is a Schottky diode type SMD (SMT) mounting product.

  • Voltage - DC Reverse (Vr): 40V
  • Current - Average Rectified (Io): 1.5A
  • Voltage - Forward (Vf) (Max) @ If: 550mV @ 2A
  • Reverse Recovery Time (trr): 50ns
  • Current - Reverse Leakage @ Vr: 2mA @ 40V
  • Application: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
