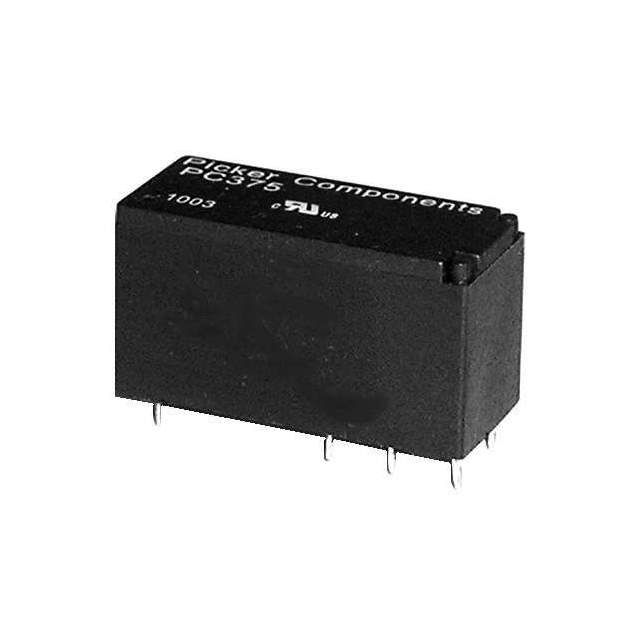

PC375-2C-24S4-X Real Image
Same model may have multiple batches, images only for reference.

PC375-2C-24S4-X

Part No PC375-2C-24S4-X
Manufacturer Picker Components
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 16A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Datasheet
PC375-2C-24S4-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Picker Components
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 110VDC - Max
Coil Current 17.1 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.405 kOhms
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
California Prop 65 Warning Information
Win Source Part Number 1345648-PC375-2C-24S4-X
Ultra Librarian 3D Model Ultra Librarian PC375-2C-24S4-X CAD Model

Description

The PC375-2C-24S4-X from Picker Components is a DPDT (2 Form C) power relay with a PC pin termination style.

  • Contact Material: Silver tin oxide (AgSnO)
  • Switching Current: Up to 8A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.405 kOhms
  • Temperature Range: -40°C to 85°C
  • Seal Rating: Fully sealed
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.41.0020
  • Must Operate Voltage: 16.8VDC
  • Must Release Voltage: 2.4VDC
  • REACH Compliant: Yes
