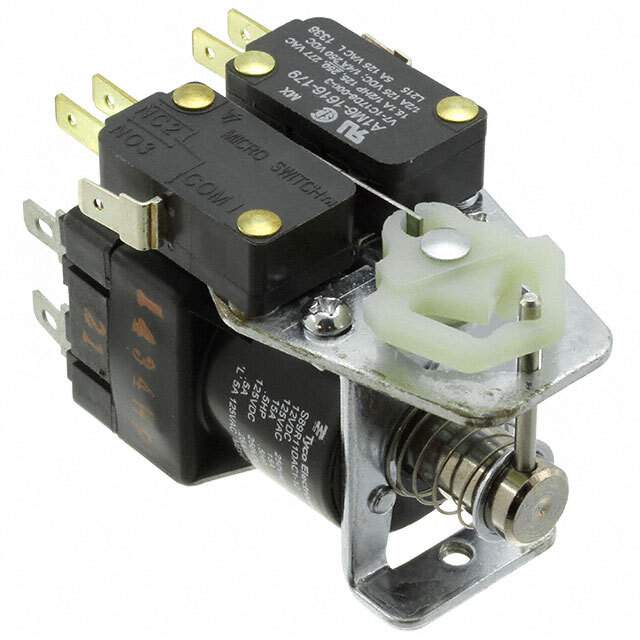

S89R11DAC1-12 Real Image
Same model may have multiple batches, images only for reference.

S89R11DAC1-12

Part No S89R11DAC1-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY IMPULSE DPDT 15A 12V / Impulse Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
Datasheet
S89R11DAC1-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series S89R
Package Bulk
Product Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 277VAC - Max
Coil Current 533 mA
Coil Type Latching, Single Coil
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 9 VDC
Temperature Range - Operating -10°C ~ 60°C
Relay Type Impulse
Coil Resistance 22.5 Ohms
Base Product Number S89R11
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1339076-S89R11DAC1-12
Ultra Librarian 3D Model Ultra Librarian S89R11DAC1-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays S89R11DAC1-12 power relay is designed for use in a variety of applications, including power supplies, inverters, and other electronic equipment from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 15 A
  • Coil Resistance: 22.5 Ohms
  • Coil Current: 533 mA
  • Must Operate Voltage: 9 VDC
