Same model may have multiple batches, images only for reference.

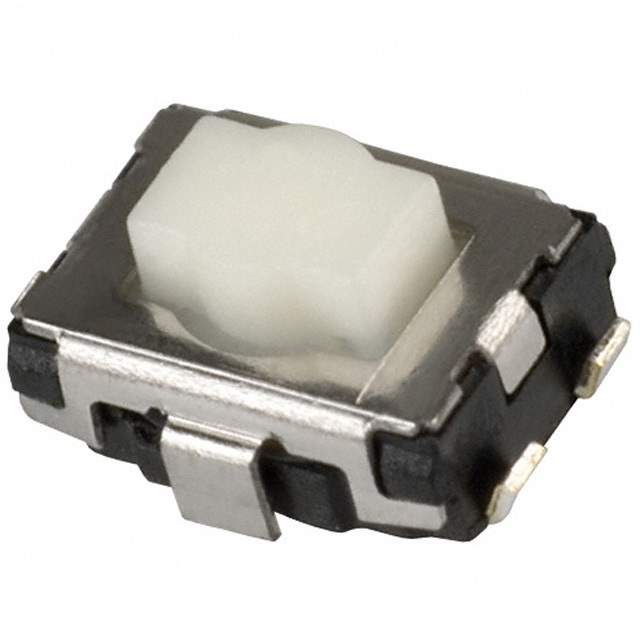

EVQ-P2V02W Real Image
Same model may have multiple batches, images only for reference.

EVQ-P2V02W

Part No EVQ-P2V02W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQP2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 350gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 200,000 Cycles
Base Product Number EVQ-P2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P12295SDKR,P12295STR-NDR,P12295SCT,P12295STR,P12295SCT-NDR,EVQP2V02W
Standard Package 4,000
Win Source Part Number 1058080-EVQ-P2V02W
Ultra Librarian 3D Model Ultra Librarian EVQ-P2V02W CAD Model

Description

The Panasonic Electronic Components EVQ-P2V02W switch is a tactile switch with a rectangular button actuator type and a circuit configuration of single pole single throw normally open (SPST-NO).

  • Product: EVQ-P2V02W
  • Manufacturer: Panasonic Electronic Components
  • Switch Type: Tactile Switch
  • Actuator Type: Rectangular Button
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.25mm
  • Contact Rating: 0.02A @ 15VDC
  • Operating Force: 350gf
  • Mechanical Life: 200,000 Cycles
  • Actuator Height off PCB: 2.50mm
  • Mounting: SMD (SMT)
  • Series: EVQP2
  • Packaging: Tape and Reel
  • Operating Temperature: -40°C to 85°C
