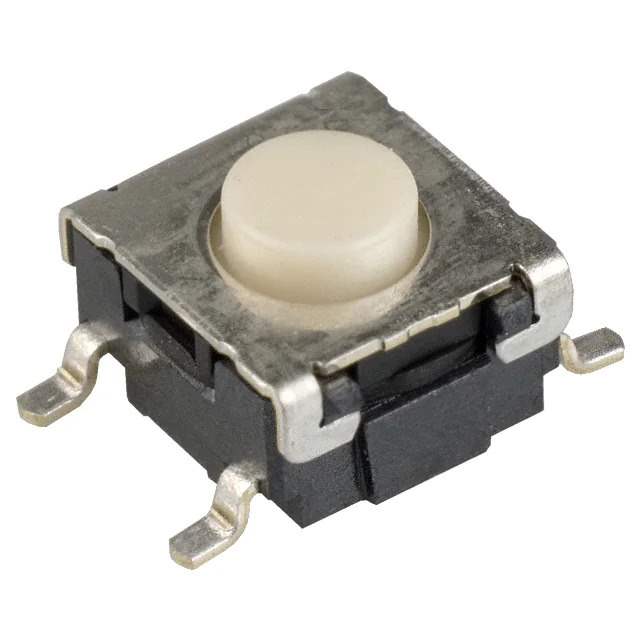

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3S
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.60mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Base Product Number B3S
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 844955-B3S-1000
Ultra Librarian 3D Model Ultra Librarian B3S-1000 CAD Model

Description

The B3S-1000 is a tactile switch from Omron.

  • Series: B3S
  • Termination Style: Gull Wing
  • Ingress Protection: IP67
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Orientation: Top Actuated
  • Outline: 6.60mm x 6.00mm
  • Illumination: Non-Illuminated
  • Operating Force: 160gf
  • Mechanical Life: 500,000 cycles
  • Mounting: Surface Mountable
  • Operating Temperature: -25°C to 70°C
