Same model may have multiple batches, images only for reference.

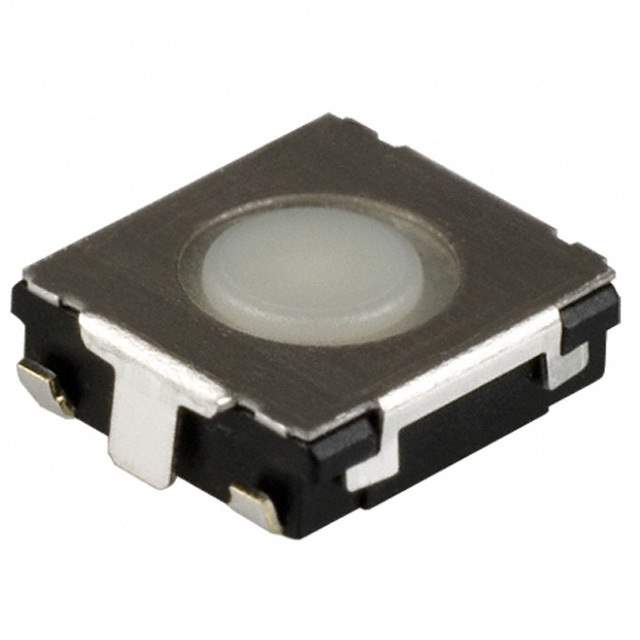

EVQ-Q2W01W Real Image
Same model may have multiple batches, images only for reference.

EVQ-Q2W01W

Part No EVQ-Q2W01W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQQ2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 260gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 200,000 Cycles
Base Product Number EVQ-Q2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names EVQQ2W01W,P12956STR,P12956SCT,P12956SDKR
Standard Package 4,000
Win Source Part Number 1133582-EVQ-Q2W01W
Ultra Librarian 3D Model Ultra Librarian EVQ-Q2W01W CAD Model

Description

The EVQ-Q2W01W is a tactile switch component manufactured by Panasonic Electronic Components. This component has a Win Source Part Number of 1133582-EVQ-Q2W01W and is part of the EVQQ2 series.

  • Manufacturer: Panasonic Electronic Components
  • Win Source Part Number: 1133582-EVQ-Q2W01W
  • Series: EVQQ2
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.02A @ 15VDC
  • Operating Force: 260gf
  • Packaging: Tape & Reel
  • Temperature Range: -40°C ~ 85°C
  • Mechanical Life: 200,000 Cycles
  • Category: Switches>Tactile Switches
