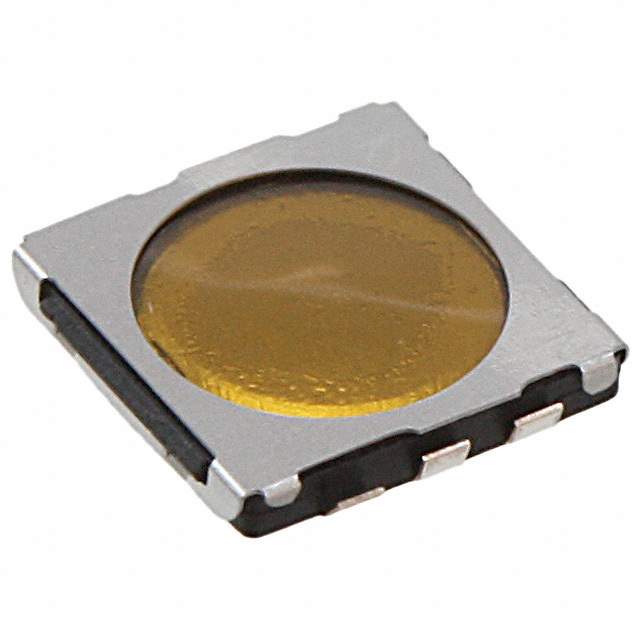

EVP-AHAD6A

Name: EVP-AHAD6A
Brand: Panasonic
SKU: 1127643
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVP-AHAD6A
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPDT 0.02A 15V / Tactile Switch SPST-NO x 2 Top Actuated Surface Mount
Datasheet	EVP-AHAD6A Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVPAH
Package	Tape & Reel
Product Status	Obsolete
Circuit	SPST-NO x 2
Switch Function	Off-Mom-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Flush
Mounting	SMD (SMT)
Actuator Height off PCB, Vertical	0.59mm
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	4.10mm x 4.00mm
Illumination	Non-Illuminated
Operating Force	80/160gf
Features	Grounding Pin
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.15mm, 0.30mm
Mechanical Life	100,000 Cycles
Base Product Number	EVP-AH
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	P15922SDKR,P15922SCT,EVPAHAD6A,P15922STR
Standard Package	8,000
Win Source Part Number	1127643-EVP-AHAD6A
Ultra Librarian 3D Model	Ultra Librarian EVP-AHAD6A CAD Model

Description

The Panasonic Electronic Components EVP-AHAD6A is a tactile switch with SPST-NO x 2 circuit.

Circuit: SPST-NO x 2
Actuator Type: Flush
Switch Function: Off-Mom-Mom
Actuator Travel: 0.15mm and 0.30mm
Operating Force: 80/160gf
Mechanical Life: 100,000 cycles
Temperature Range: -20°C to 70°C
Actuation: Top Actuated
Grounding Pin: Yes
Packaging: Tape and Reel
Standard Package: 8,000
Popularity: Medium
