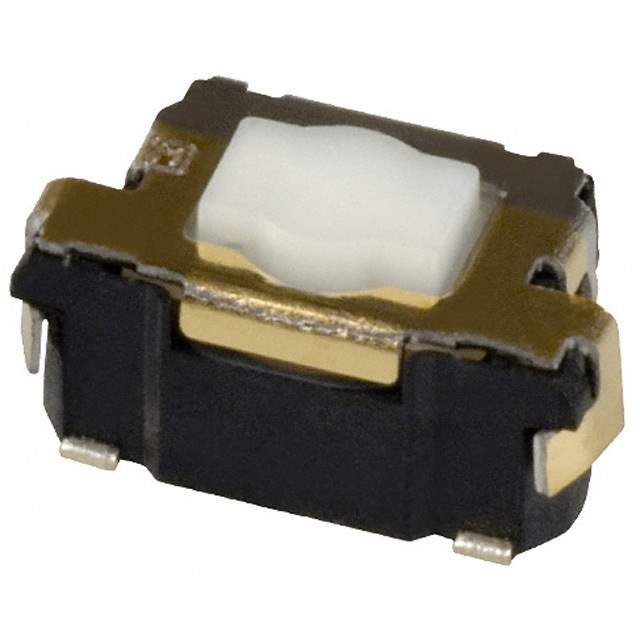

EVQP8203M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Case / Package SMD/SMT
Contact Current Rating 20 mA
Contact Resistance 100 mΩ
Current Rating 20 mA
Height 3.7 mm
Illumination Type Non-Illuminated
Lead Free Lead Free
Life (Cycles) 1 Mcycles
Max Operating Temperature 85 °C
Max Voltage Rating (DC) 15 V
Mechanical Life 1 Mcycles
Min Operating Temperature -40 °C
Mount Edge, Surface Mount
Operating Force 1.6 N
Orientation Right Angle
Packaging Tape & Reel (TR)
Radiation Hardening No
RoHS Compliant
Switch Function Off-Mom
Switch Travel 250 µm
Termination SMD/SMT
Throw Configuration SPST
Voltage Rating (DC) 15 V
Win Source Part Number 1145053-EVQP8203M
Categories Tactile Switches
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQP8203M CAD Model

Description

The Panasonic 1145053-EVQP8203M is a surface mount tactile switch with a termination of SMD/SMT.

  • Termination: SMD/SMT
  • Current Rating: 20 mA
  • Contact Resistance: 100 mΩ
  • Switch Function: Off-Mom
  • Switch Travel: 250 µm
  • Orientation: Right Angle
  • Height: 3.7 mm
  • Contact Current Rating: 20 mA
  • Operating Force: 1.6 N
  • Mechanical Life: 1 Mcycles
  • Illumination Type: Non-illuminated
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Mounting: Edge, Surface Mount
  • Case/Package: SMD/SMT
  • Operating Temperature Range: -40 °C to 85 °C
  • Supply and Demand Status: Limited
