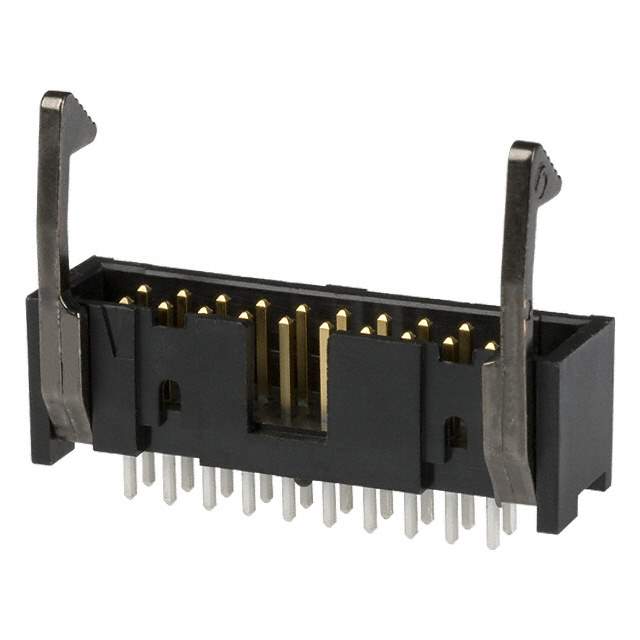

1761606-7 Real Image
Same model may have multiple batches, images only for reference.

1761606-7

Part No 1761606-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description HEADER ASSEMBLY, VERTICAL LONG EJECT LATCH, LOW PROFILE, IDC | CONN HEADER VERT 20POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.237" (6.02mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.404" (10.26mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0μin (2.54μm)
Manufacturer Pack Quantity 16
MSL Level 1 (Unlimited)
Win Source Part Number 1121482-1761606-7
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1761606-7 CAD Model

Description

The TE Connectivity AMP Connectors 1121482-1761606-7 is a connector with 20 positions and is mounted through a hole.

  • Locking: latch lock/eject hooks
  • Fastening Type: long
  • Contact Type: male pin
  • Voltage Rating: 250VAC
  • Contact Material: phosphor bronze
  • Popularity: medium popularity
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 16
  • MSL Level: 1 (unlimited)
  • Current Rating: 1A per contact
