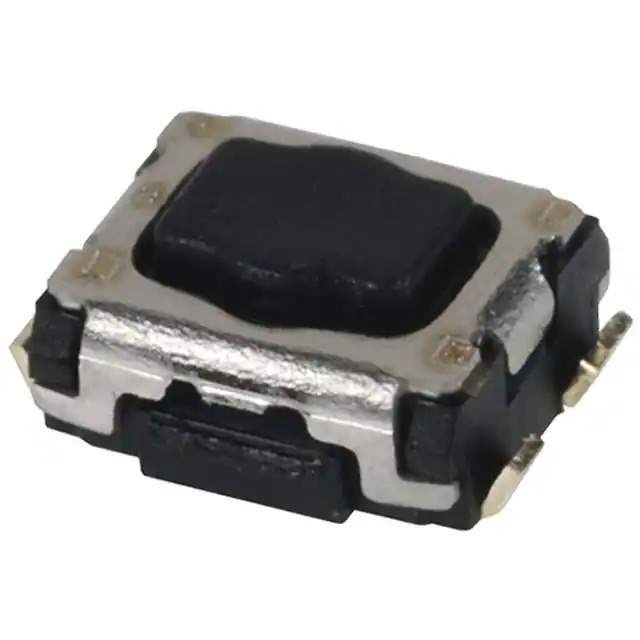

Same model may have multiple batches, images only for reference.

EVP-AA002K

Name: EVP-AA002K
Brand: Panasonic
SKU: 871293
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EVP-AA002K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic
Series	EVPAA
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	1.70mm
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	3.50mm x 2.90mm
Illumination	Non-Illuminated
Operating Force	100gf
Temperature Range - Operating	-40°C ~ 85°C
Switch Travel	0.15mm
Mechanical Life	1,000,000 Cycles
Base Product Number	EVP-AA
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	871293-EVP-AA002K
Ultra Librarian 3D Model	Ultra Librarian EVP-AA002K CAD Model

Alternative Products

Description

The 871293-EVP-AA002K is a tactile switch from Panasonic.

Category: Switches - Tactile Switches
Series: EVPAA
Termination Style: J Lead
Features: None
Package Type: Tape & Reel
Standard Package: 5,000 pieces
Circuit: SPST-NO
Function: Off-Momentary
Actuator Type: Rectangular Button
Switch Travel: 0.15mm
Contact Rating: 0.02A @ 15VDC
Actuator Orientation: Top Actuated
Outline Dimensions: 3.50mm x 2.90mm
Illumination: Non-Illuminated
Operating Force: 100gf
Mechanical Life: 1,000,000 cycles
Mounting: Surface Mountable
Operating Temperature: -40°C to 85°C
HTSUS Code: 8536.50.9031
Base Product Number: EVP-AA
Status: Active
