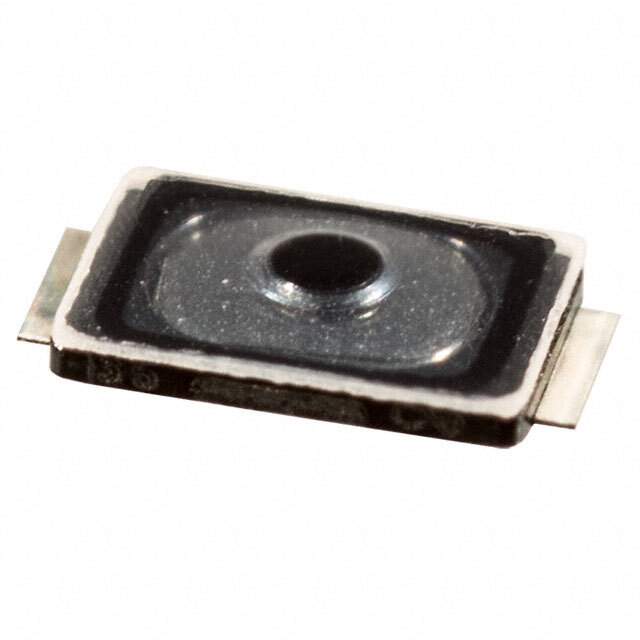

EVP-AWED2A Real Image
Same model may have multiple batches, images only for reference.

EVP-AWED2A

Part No EVP-AWED2A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVP-AWED2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVPAW
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 330gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 300,000 Cycles
Base Product Number EVP-AW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P19745CT,P19745DKR,EVPAWED2A,P19745TR
Standard Package 10,000
Win Source Part Number 1120617-EVP-AWED2A
Ultra Librarian 3D Model Ultra Librarian EVP-AWED2A CAD Model

Description

The EVPAWED2A is a tactile switch from Panasonic Electronic Components.

  • Mounting Type: Surface Mount
  • Package: 10,000
  • Ingress Protection: IP67
  • Switch Function: SPST-NO
  • Off-Mom: Yes
  • Actuator Type: Standard
  • Switch Travel: 0.15mm
  • Illumination: Non-Illuminated
  • Operating Force: 330gf
  • Mechanical Life: 300,000 Cycles
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
