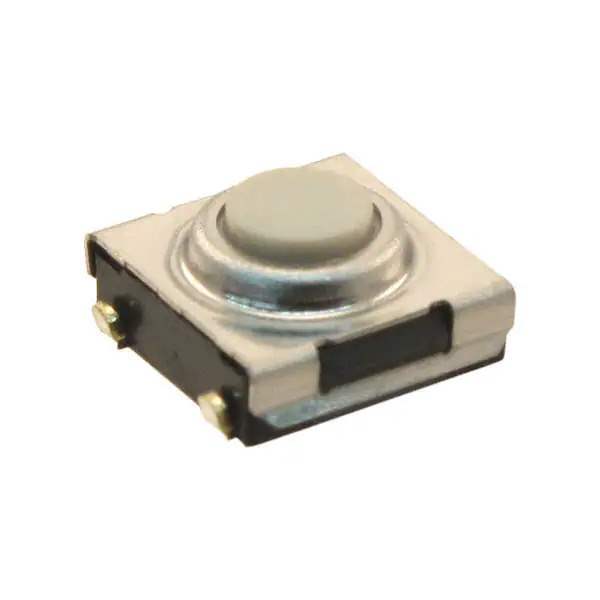

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3SN
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Sealed - Fully
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number B3SN
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568081-B3SN-3012P
Ultra Librarian 3D Model Ultra Librarian B3SN-3012P CAD Model

Description

The 568081-B3SN-3012P is a tactile switch from Omron's B3SN series. It is an active product and is commonly used in various electronic applications.

  • Termination Style: SMD (SMT) tab
  • Packaging: Tape and reel
  • Switch Type: Single-pole, single-throw normally open (SPST-NO)
  • Switch Function: Off-momentary
  • Ingress Protection: IP67 (dust tight and waterproof)
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Actuation: Top actuated
  • Outline Dimension: 6.50mm x 6.00mm
  • Illumination: Non-illuminated
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Mounting Type: Surface mount
  • Operating Temperature Range: -25°C to 70°C
