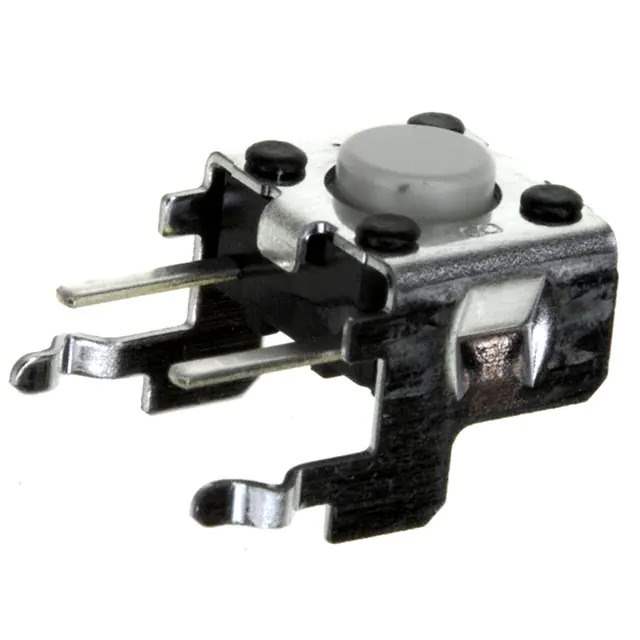

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Bag
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole, Right Angle
Actuator Length, Right Angle 3.15mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.30mm x 6.25mm
Illumination Non-Illuminated
Operating Force 100gf
Features Grounding Pin
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3F
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568062-B3F-3100
Ultra Librarian 3D Model Ultra Librarian B3F-3100 CAD Model

Description

The B3F-3100 is a tactile switch from Omron.

  • Series: B3F
  • Termination Style: PC Pin
  • Circuit: Single-Pole Single-Throw Normally Open (SPST-NO)
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Actuator Orientation: Side Actuated
  • Outline: 7.30mm x 6.25mm
  • Illumination: Non-Illuminated
  • Operating Force: 100gf
  • Mechanical Life: 1,000,000 Cycles
  • Mounting: Through a hole @ a right angle
  • Operating Temperature: -25°C to 70°C
