Category Switches - Tactile Switches
Mfr Panasonic
Series EVQP7
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 4.70mm x 2.90mm
Illumination Non-Illuminated
Operating Force 220gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-P7
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 846636-EVQ-P7A01P
Ultra Librarian 3D Model Ultra Librarian EVQ-P7A01P CAD Model

Description

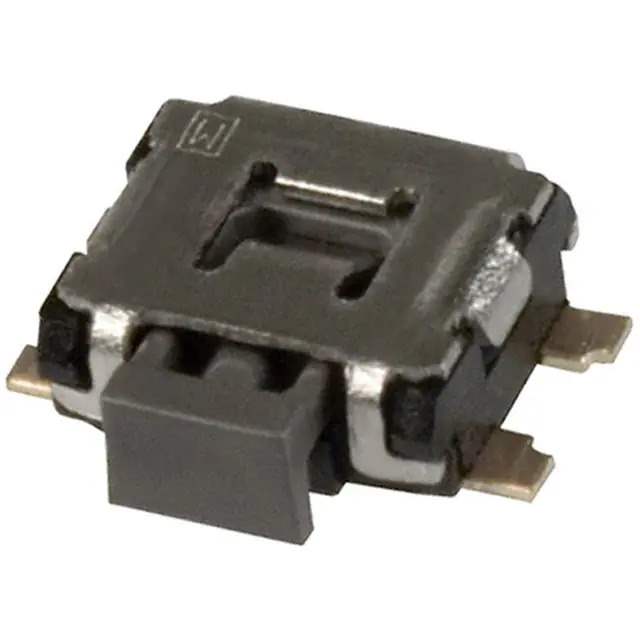

The EVQP7 series tactile switch is a versatile electronic component designed for various applications. Bold the product name (e.g., BAV99S,135 → EVQP7) and manufacturer (e.g., Nexperia USA Inc. → N/A).

  • Termination Style: Gull Wing
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Rectangular Button
  • Size: 4.70mm x 2.90mm
  • Illumination: Non-Illuminated
  • Operating Force: 220gf
  • Mechanical Life: 100,000 Cycles
  • Mounting Type: Surface Mount
  • Operating Temperature: -20°C to 70°C
