Same model may have multiple batches, images only for reference.

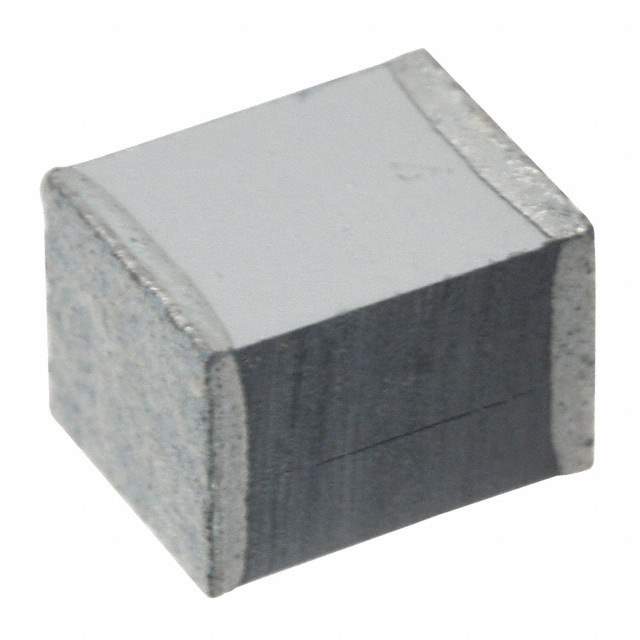

CB052D0105JBC Real Image
Same model may have multiple batches, images only for reference.

CB052D0105JBC

Part No CB052D0105JBC
Manufacturer AVX Corporation
Catalog Film Capacitors
Description CAP FILM 1UF 5% 63VDC 2824
Datasheet
CB052D0105JBC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 13 Weeks
Features 1 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2824 (7260 Metric)
Manufacturer AVX Corporation
Series CB
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 2824 (7260 Metric)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Quantity per package 2250
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 865856-CB052D0105JBC
Ultra Librarian 3D Model Ultra Librarian CB052D0105JBC CAD Model

Description

The AVX Corporation CB052D0105JBC is a high-quality film capacitor, with a capacitance of 1 µF and a voltage rating of 40V/63V.

  • Capacitance: 1 µF
  • Voltage Rating: 40V/63V
  • Mounting Type: Surface Mount
  • Package / Case: 2824 (7260 Metric)
  • Packaging: Reel
  • Operating Temperature: -55°C ~ 125°C
  • Material: Polyester, Polyethylene Terephthalate (PET), Metallized-Stacked
  • Applications: Decoupling, Filtering, Power Supply Circuits
  • Quantity per Package: 2250
  • Estimated Production Lead Time: 13 weeks
